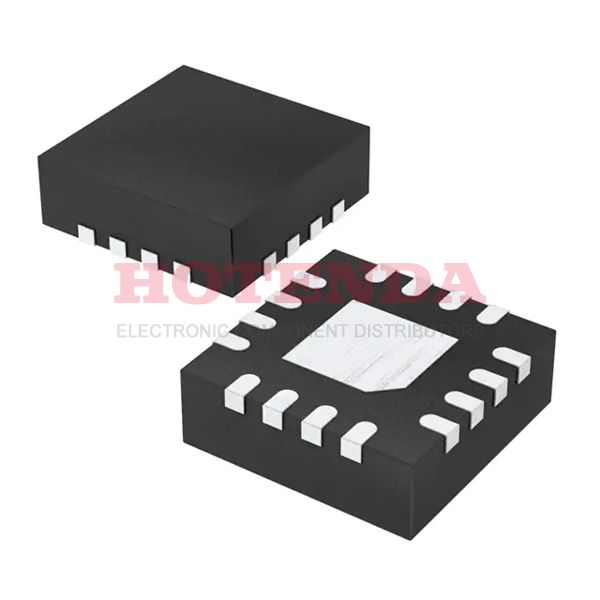

NB6N239SMNR2 Overview
Clock generator is packaged in the way of Tape & Reel (TR). A Clock PLL is included with the 16-VFQFN Exposed Pad package. The peak reflow temperature (Cel) amounts to 240 to be essentially indestructible. There are a total of 16 terminations in this file. Clock generator ics require a voltage of 3.3V. A clock generator's input is called CML, HSTL, LVDS, LVPECL and it is designed as the input for this clock generator. To access the electronic component's full performance, 1 circuits are implemented. This clock-based frequency generator provides a frequency up to 3GHz Max. With the Surface Mount, it is easy to install this electric component on the panel. The maximal supply voltage this clock generator would take is 3.465V. Keeping the supply voltage for this frequency synthesizer above 3V is recommended for safety reasons. There are 3V~3.465V available for use with this clock PLL. Based on the test statistics, an ambient temperature of -40°C~85°C should be set. This is a clock generator compatible with LVDS logic levels. Clock Divider is the type of electrical part that this component is classified as. It is a 16-bit IC that is designed for microprocessors specifically. These related electrical parts are available for the base part number NB6N239S. There are 16 pins that are available on the frequency generator. Fundamentally, this is a kind of Clock Drivers clock PLL. The ECLinPS MAX? series includes this electronic part. At 0.03 ns Max, this clock generator offers low timing skew. If you search for the 6N family of electronic parts, you will be able to find similar parts.
NB6N239SMNR2 Features
Available in the 16-VFQFN Exposed Pad
Supply voltage of 3.3V
NB6N239SMNR2 Applications
There are a lot of ON Semiconductor NB6N239SMNR2 Clock Generators applications.
- Jitter reduction
- Radar
- Closed circuit systems
- 1 Gigabit Ethernet
- Satellite receivers
- Signal generator
- Clock generation systems
- Wi-Fi routers
- Fiber Channel
- Ultrasound diagnosis
