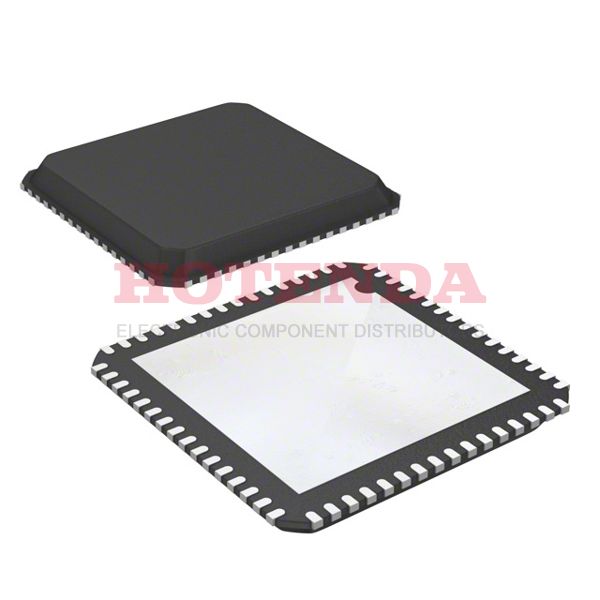

NB3W1200LMNTXG Overview
The Tape & Reel (TR) method is used for packaging clock ICs. The 64-VFQFN Exposed Pad package embeds this Clock PLL. As a result of this, we can find 64 terminations. This clock generator ic should receive a voltage of 3.3V. It is designed that the Clock PLL's input should be Clock. A total of 1 circuits are implemented to access the full performance of the electrical part. Thanks to the Surface Mount, this electric component can be conveniently installed on the panel. It would be possible to supply this clock PLL with 3.465V of power. This clock PLL works with a supply voltage of 3.135V~3.465V. Based on test statistics, ambient temperature should be set at 0°C~70°C. The related electrical components for the base part number NB3W1200 can be found below. There is an available 64 pin on the clock generators. RF synthesizers can handle a voltage of 3.3V as the supply voltage. Clock PLL has 12 signal outputs to maximi12e output frequency. At maximum 0.05 ns, this analog clock generator has low timing skew. By searching for the NB3 family, it is possible to find similar electrical components. At frequencies of 133MHz, RF synthesizer achieves high efficiency. For the RF synthesizer to function properly, a supply current of 180mA must be provided. When this RF synthesizer is operated at its maximum current, it will supply 180mA.
NB3W1200LMNTXG Features
Available in the 64-VFQFN Exposed Pad
Supply voltage of 3.3V
Operating supply voltage of 3.3V
NB3W1200LMNTXG Applications
There are a lot of ON Semiconductor NB3W1200LMNTXG Clock Generators applications.
- Ultrasound diagnosis
- Laptops
- Radar
- Wi-Fi routers
- Small signal recovery
- Remote telemetry and instrumentation
- FMCW Radar
- FPGA and processor clocks
- Bit synchronization
- Threshold extension
