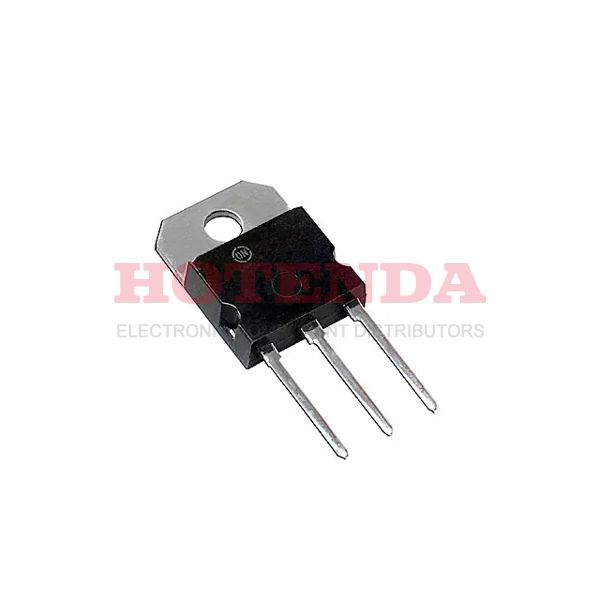

Name: MUR3020PTG
Brand: ON Semiconductor
SKU: MUR3020PTG
Availability: InStock

new-10%

MUR3020PTG

Manufacturer part number:MUR3020PTG

Manufacturer:ON Semiconductor

Description:MUR3020PTG datasheet pdf and Diodes - Rectifiers - Arrays product details from ON Semiconductor stock available on our website

Case Package:SOT-23

Datasheet:MUR3020PTG Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	LAST SHIPMENTS (Last Updated: 3 days ago)
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-218-3
Number of Pins	3
Diode Element Material	SILICON
Packaging	Tube
Published	1997
Series	SWITCHMODE™
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
Termination	Through Hole
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Max Operating Temperature	175°C
Min Operating Temperature	-65°C
Additional Feature	FREE WHEELING DIODE
HTS Code	8541.10.00.80
Subcategory	Rectifier Diodes
Voltage - Rated DC	200V
Terminal Position	SINGLE
Peak Reflow Temperature (Cel)	260
Current Rating	30A
[email protected] Reflow Temperature-Max (s)	40
Base Part Number	MUR3020PT
Pin Count	3
Qualification Status	Not Qualified
Number of Elements	2
Element Configuration	Common Cathode
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Standard
Current - Reverse Leakage @ Vr	10μA @ 200V
Voltage - Forward (Vf) (Max) @ If	1.05V @ 15A
Forward Current	30A
Operating Temperature - Junction	-65°C~175°C
Max Surge Current	200A
Application	POWER
Breakdown Voltage	200V
Forward Voltage	1.05V
Max Reverse Voltage (DC)	200V
Average Rectified Current	15A
Number of Phases	1
Reverse Recovery Time	35 ns
Peak Reverse Current	10μA
Max Repetitive Reverse Voltage (Vrrm)	200V
JEDEC-95 Code	TO-218AC
Peak Non-Repetitive Surge Current	200A
Reverse Voltage	200V
Diode Configuration	1 Pair Common Cathode
Max Forward Surge Current (Ifsm)	200A
Recovery Time	35 ns
Height	12.2mm
Length	15.2mm
Width	4.9mm
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Lead Free	Lead Free

MUR3020PTG Product Details

MUR3020PTG Overview

In the case of 1.05V forward voltage, the device will operate.Monarrayoring the surge current and preventing array from exceeding 200A should be the rule.Devices that have a forward voltage of 30A will operate.From the part, a current of 30A can be drawn.Devices like this one are powered with a reverse voltage peak of 10μA.
