Name: MMSZ28VCF
Brand: ON Semiconductor
SKU: MMSZ28VCF
Availability: InStock

new-10%

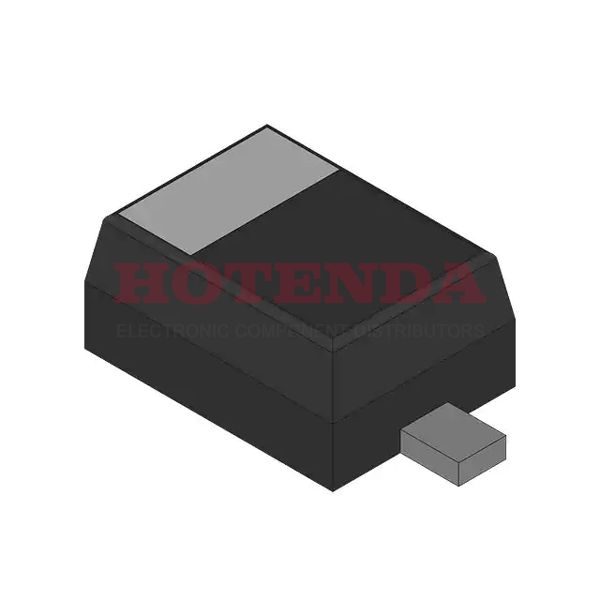

MMSZ28VCF

Manufacturer part number:MMSZ28VCF

Manufacturer:ON Semiconductor

Description:ZENER DIODE 15Ohm ±5% 1μA @ 21V 150°C TJ 2 Terminations SOD-123F

Case Package:SOT-23

Datasheet:MMSZ28VCF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	LAST SHIPMENTS (Last Updated: 1 week ago)
Factory Lead Time	17 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SOD-123F
Weight	27.6mg
Diode Element Material	SILICON
Operating Temperature	150°C TJ
Packaging	Tape & Reel (TR)
Tolerance	±5%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
HTS Code	8541.10.00.50
Terminal Position	DUAL
Terminal Form	FLAT
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Reach Compliance Code	not_compliant
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Reference Standard	AEC-Q101
JESD-30 Code	R-PDSO-F2
Number of Elements	1
Polarity	UNIDIRECTIONAL
Configuration	SINGLE
Power Dissipation-Max	1W
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	1μA @ 21V
Voltage - Forward (Vf) (Max) @ If	1.2V @ 200mA
Power - Max	1W
Impedance-Max	15Ohm
Reference Voltage	28V
Voltage - Zener (Nom) (Vz)	28V
Voltage Tol-Max	5%
Working Test Current	25mA
RoHS Status	ROHS3 Compliant

MMSZ28VCF Product Details

MMSZ28VCF Overview
