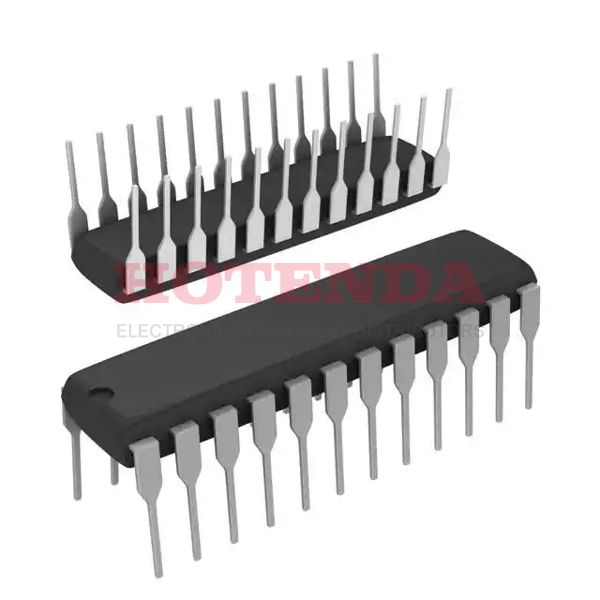

MM74HC4514N Overview
As a means of saving space, digital switch is provided in the 24-DIP (0.300, 7.62mm).The package is in the form of Tube.Digital switch ic uses a Through Hole mounting method.the multiplexers uses IC Decoder/Demultiplexer as the analog IC.By keeping the operating temperature at -40°C~85°C, turn signal switch will not be affected by external factors.When digital controlled switch operates at 2V~6V, designers are provided with a greater degree of flexibility.These multiplexers are members of the 74HC series, which provide extensive application potential.In addition, it also has a base part number of 74HC4514, which can be used to find related parts.The supply type of this multiplexer ic is Dual.The board has 24 pins configured.The mounting point is Through Hole.Signal multiplexer contains 4 bits.No external influence consumes 8μA current of multiplexer ic.In this multiplexer, there is a total of 4 inputs.Signal source consists of 16 output lines.The mux switch configuration contains 1 elements.
MM74HC4514N Features
Supplied in the 24-DIP (0.300, 7.62mm) package
Adopting a supply type of Dual
16 output lines
MM74HC4514N Applications
There are a lot of ON Semiconductor MM74HC4514N Signal Switches / Multiplexers / Decoders applications.
- Communication system
- Medium scale TV wall
- Recording transmission
- Idle motor
- To select different task for memory in microprocessor memory systems
- Analog, digital or video signal switching
- Data-routing applications
- Seven segment displays
- Electronically controlled engine system
- Automatic Monitoring systems
