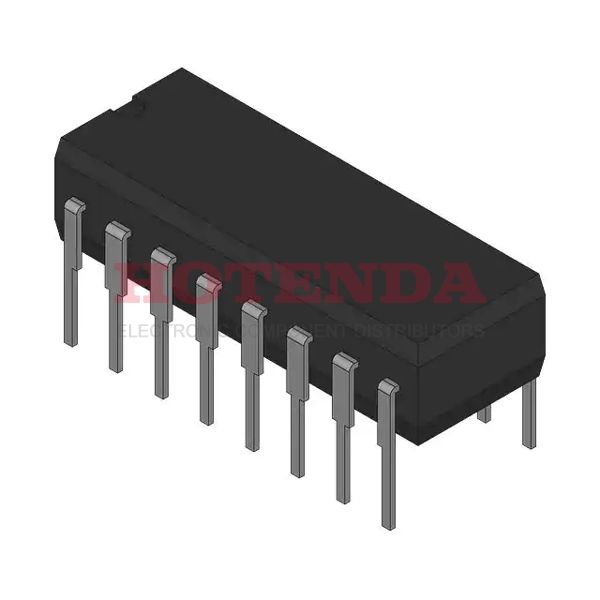

MM74HC4049N Overview
Due to its 16-DIP (0.300, 7.62mm) packaging, the part is convenient for international shipping. High reliability is achieved by using advanced packaging method Tube. Inverter logic is the basis of its operation. This part needs a voltage of 2V~6V to function properly. An extended operating temperature of -40°C~85°C degrees Celsius. Part Through Hole is mounted. High and low output current states are both 5.2mA 5.2mA. The series 74HC contains it. Use 74HC4049 when searching for device variants. There are many applications for this logic device, mounted at Through Hole. You can find the functions of the 16 pins in the datasheets. As the part is in a quiescent state, it has 2μA current flowing through it. 5.2mA is the output current of the device. A device with 6 outputs is available. There are a total of 6 elements used in the operation.
MM74HC4049N Features
Inverter Logic Type
Operating Temperature: -40°C~85°C
Quiescent Current: 2μA
Output Current: 5.2mA
MM74HC4049N Applications
There are a lot of ON Semiconductor
MM74HC4049N Gates and Inverters applications.
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
