MC78L12ACPX Overview

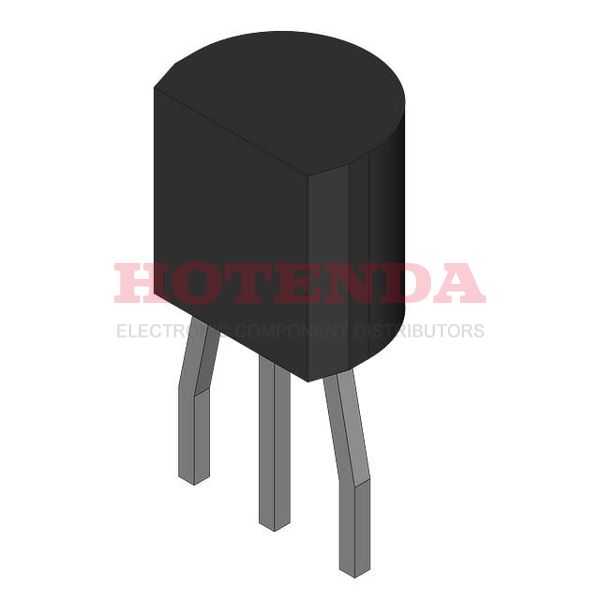

The package is delivered in a Tape & Reel (TR) case. In order to package the IC voltage regulator, a TO-226-3, TO-92-3 (TO-226AA) (Formed Leads) case is used. This IC Regulator has a type of output called Fixed. There are 1 regulators implemented in this electroic component. Through Hole can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at 0°C~125°C degrees for it to function. As you can see, this regulator's output function is configured to be Positive. A dropout voltage of 10 volts is what makes it a dropout voltage. Depending on the chip, 3 pins may be available. For your information, part number MC78L12 is the basic part number for this voltage regulator IC. There is a maximum output current of 100mA for this regulator to meet the operational requirements. It operates in the 6mA Quiescent Current state.
MC78L12ACPX Features
1.7V dropout voltage
MC78L12ACPX Applications
There are a lot of ON Semiconductor
MC78L12ACPX Linear Voltage Regulators applications.
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
- Measurement and control euipment
