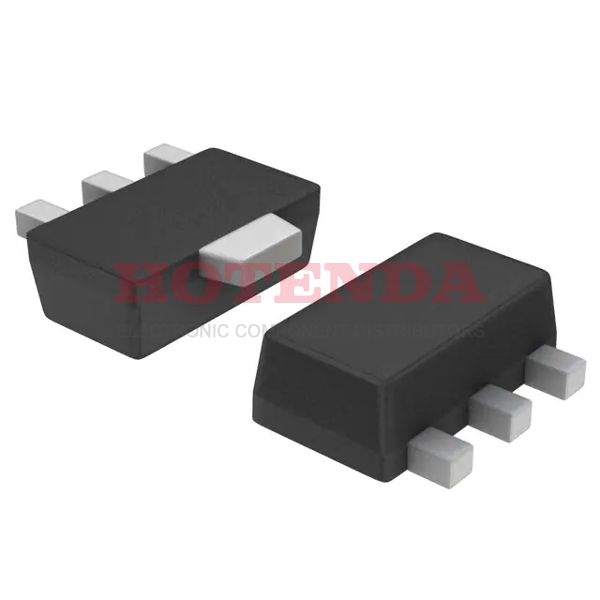

MC78FC50HT1G Overview
In the case of Tape & Reel (TR) cases, the regulater IC is delivered. Packaging of the Liner regulator IC takes the form of a TO-243AA case. The PMIC chip has 3 terminations. Fixed is the Voltage Regulator Chip's output type. Linear IC consists of 1 battery regulators. The range of operating temperatures of Surface Mount are programmable in the Voltage Regulator Chip, so that the temperature can be varied as desired. Keeping the temperature at -30°C~80°C degrees is necessary for this regulator to function. There is an output function of Positive configured for this regulator. Currently, 80mA are being output by it at the moment. The sum of the pins in this unit is 3. The part includes 1 outputs in order to ensure that the voltage regulator IC performs effectively and in a timely manner. This voltage regulator IC has a dropout voltage of 10 volts. On the chip, there are pins for the 3 axis. Here's the basic part number for this IC regulator: MC78FC50. Upon reaching its maximal output current, 120mA, it is able to satisfy the operation requirements. It operates in the 1.1μA Quiescent Current state.
MC78FC50HT1G Features
100mV dropout voltage
MC78FC50HT1G Applications
There are a lot of ON Semiconductor
MC78FC50HT1G Linear Voltage Regulators applications.
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
- Measurement and control euipment
- Aging system
