Name: MC78FC40HT1G
Brand: ON Semiconductor
SKU: MC78FC40HT1G
Availability: InStock

new-10%

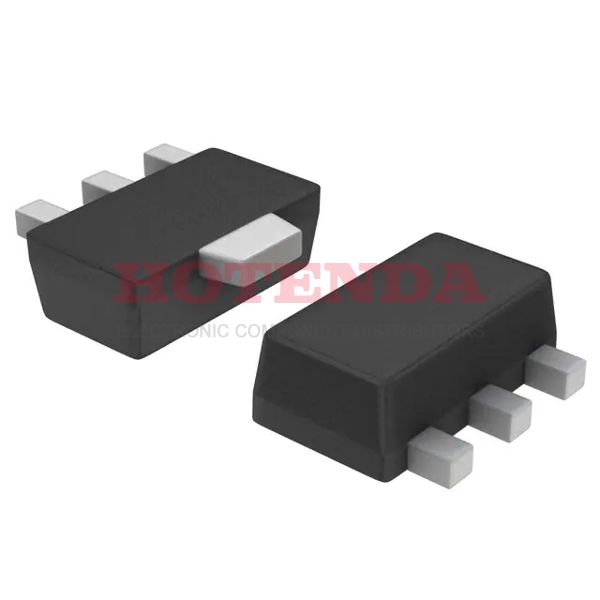

MC78FC40HT1G

Manufacturer part number:MC78FC40HT1G

Manufacturer:ON Semiconductor

Description:Fixed MC78FC40 PMIC 3 TO-243AA

Case Package:SOT-23

Datasheet:MC78FC40HT1G Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	2 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-243AA
Number of Pins	3
Operating Temperature	-30°C~80°C
Packaging	Tape & Reel (TR)
Published	2001
JESD-609 Code	e2
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	Tin/Silver (Sn/Ag)
Power Rating	900mW
Max Power Dissipation	300mW
Terminal Position	SINGLE
Terminal Form	FLAT
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	MC78FC40
Pin Count	3
Number of Outputs	1
Voltage - Input (Max)	10V
Output Voltage	4V
Output Type	Fixed
Max Output Current	100mA
Output Configuration	Positive
Power Dissipation	300mW
Current - Output	65mA
Quiescent Current	1.1μA
Accuracy	2.5 %
Output Voltage 1	4V
Number of Regulators	1
Min Input Voltage	2V
Protection Features	Over Current
Current - Quiescent (Iq)	3.6μA
Voltage Dropout (Max)	0.7V @ 40mA
Dropout Voltage	500mV
Dropout Voltage1-Nom	0.7V
Min Output Voltage	4V
Input Bias Current	1μA
Output Voltage Accuracy	2.5 %
Height	1.6mm
Length	4.6mm
Width	2.6mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Lead Free	Lead Free

MC78FC40HT1G Product Details

MC78FC40HT1G Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a TO-243AA package. There are 3 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -30°C~80°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 65mA. IC voltage regulator has a sum of 3 pins. To ensure prompt, sufficient performance, this part features 1 outputs in total. Its dropout voltage is 10 volts. The component's pin number remains 3. FYI, the basic part number for this IC regulator is MC78FC40. It works in 100mA output current at mostIt operates in the 1.1μA Quiescent Current state.
