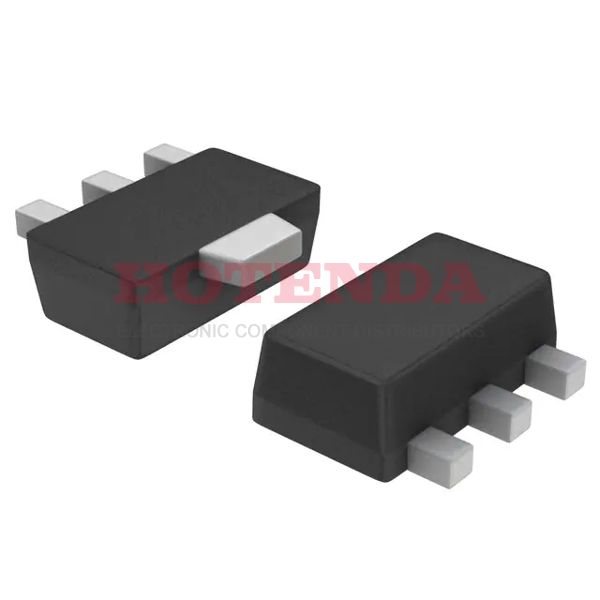

MC78FC30HT1G Overview
Tape & Reel (TR) cases are used for delivery. The Liner regulator IC is packaged in TO-243AA case. On the Linear IC itself, there are 3 terminations. Fixed is the output type of the Voltage Regulator IC. As part of this electrical component, 1 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -30°C~80°C degrees. There is a Positive configured as the output function for this IC regulator. There is a current output of 50mA from this regulator IC. There are a total of 3 pins on this board. There are 1 outputs total on this voltage regulator IC in order to ensure that prompt and sufficient performance is achieved. There is a dropout voltage of 10 volts on this IC regulator. Chips have 3 pins. For your information, the basic part number for this regulator IC is MC78FC30. In order to meet the operation requirements, its maximal output current reaches 120mA. It operates in the 1.1μA Quiescent Current state.
MC78FC30HT1G Features
500mV dropout voltage
MC78FC30HT1G Applications
There are a lot of ON Semiconductor
MC78FC30HT1G Linear Voltage Regulators applications.
- Battery-powered device
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
