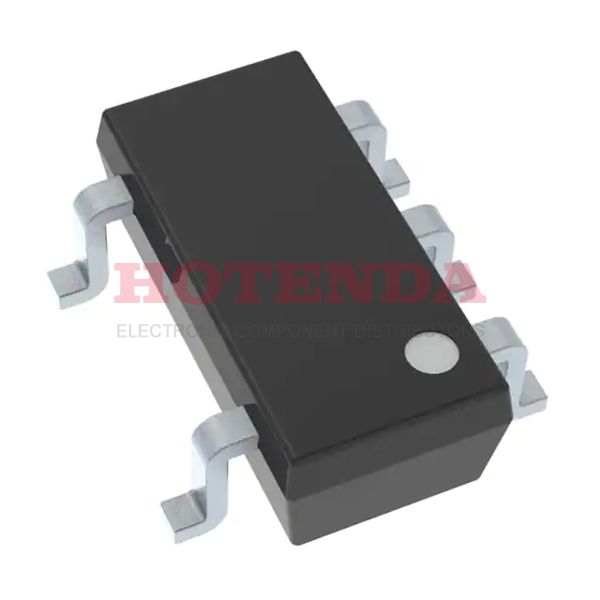

MC74VHC1G09DBVT1G Overview
As the part is packed in SC-74A, SOT-753, international shipping is convenient. A high level of reliability can be achieved through the use of an advanced packaging method Tape & Reel (TR). This logic works according to the AND Gate principle. Ensure the part's full functionality by setting the voltage to 2V~5.5V. Operating temperature extended to -55°C~125°C. It is mounted in position Surface Mount. - 8mA is the output current's high and low states. 74VHC is its series number. Trying searching with 74VHC1G09 will yield device variants. Inputs for the part are set to 2. There are 1 circuits in this device. Standby current is 1μA. A feature of it is Open Drain.
MC74VHC1G09DBVT1G Features
AND Gate Logic Type
Operating Temperature: -55°C~125°C
MC74VHC1G09DBVT1G Applications
There are a lot of ON Semiconductor
MC74VHC1G09DBVT1G Gates and Inverters applications.
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
