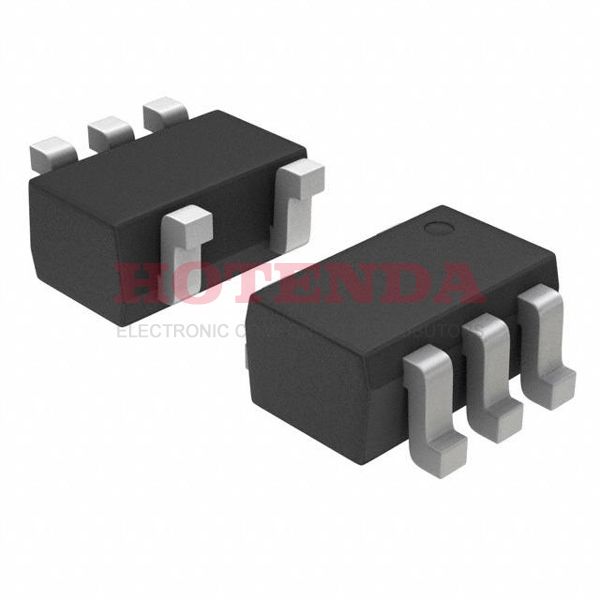

MC74VHC1G01DFT1G Overview
The part can be shipped overseas conveniently because it is packaged in 5-TSSOP, SC-70-5, SOT-353. In order to provide high reliability, an advanced packaging method Tape & Reel (TR) is used. As a result, it works on the principle of NAND Gate. The part must have a voltage of 2V~5.5V in order to function properly. Operating temperature around -55°C~125°C extended. Surface Mount is the mounting position of the part. In the low and high states of output current, the current is - 8mA. This is part of the 74VHC series. In total, there are 5 terminations. 1 functions in the part enhance the user experience significantly. The chip is part of the AHC/VHC family. Use 74VHC1G01 to search for device variants. There are 5 pins injected into the part body. Many applications use this logic device with Surface Mount mounting. The functions of 5 pins can be found in the datasheets. There are 2 inputs on this part. When the part is quiescent, 1μA current flows through it. Devices require a minimum voltage of 2V. There is an industry TAPE AND REEL method included. A logical operation through a gate of 1. Open Drain is its feature.
MC74VHC1G01DFT1G Features
NAND Gate Logic Type
Operating Temperature: -55°C~125°C
AHC/VHC Family
Quiescent Current: 1μA
1 Gates
MC74VHC1G01DFT1G Applications
There are a lot of ON Semiconductor
MC74VHC1G01DFT1G Gates and Inverters applications.
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
