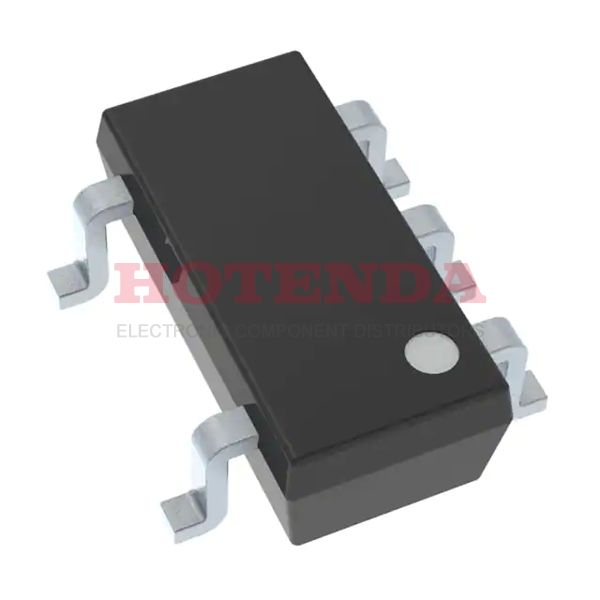

MC74VHC1G01DBVT1G Overview
The part is convenient to ship overseas because it is packed in a SC-74A, SOT-753. The advanced packaging method Tape & Reel (TR) provides high reliability. A NAND Gate logic principle governs its operation. Voltage 2V~5.5V is needed to ensure the part's full functionality. Operational temperature extended around -55°C~125°C. Mounted in Surface Mount. Output current is - 8mA in the high and low states. 74VHC is the series it belongs to. Try searching with 74VHC1G01 to find device variants. Inputs are limited to 2. The device consists of 1 circuits. In standby mode, there is 1μA maximum current. There are Open Drain features in it.
MC74VHC1G01DBVT1G Features
NAND Gate Logic Type
Operating Temperature: -55°C~125°C
MC74VHC1G01DBVT1G Applications
There are a lot of ON Semiconductor
MC74VHC1G01DBVT1G Gates and Inverters applications.
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
