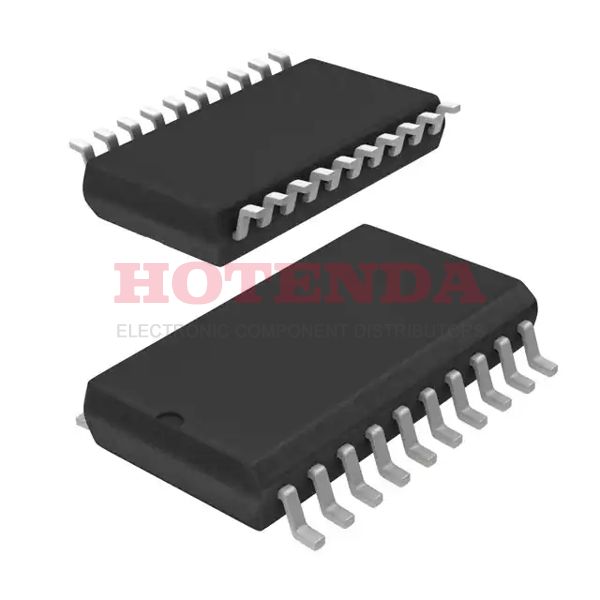

MC74ACT273DWR2G Overview
It is packaged in the way of 20-SOIC (0.295, 7.50mm Width). The Tape & Reel (TR)package contains it. Currently, the output is configured to use Non-Inverted. The trigger it is configured with uses Positive Edge. There is an electronic component mounted in the way of Surface Mount. Powered by a 4.5V~5.5Vvolt supply, it operates as follows. It is at -40°C~85°C TAdegrees Celsius that the system is operating. The type of this D latch is D-Type. FPGAs belonging to the 74ACTseries contain this type of chip. It should not exceed 200MHzin its output frequency. There are 1 elements in it. It has been determined that there have been 20 terminations. It is a member of the 74ACT273 family. Power is provided by a 5V supply. Input capacitance of this device is 4.5pF farads. In this case, the D flip flop belongs to the ACTfamily. It is mounted in the way of Surface Mount. This board has 20 pins. This device has Positive Edgeas its clock edge trigger type. It is included in FF/Latches. It is designed with 8bits. Using 8 circuits, it is highly flexible. Considering its reliability, this T flip flop is well suited for TR. The D latch runs on a voltage of 5V volts. It is recommended that the supply voltage be kept at 5Vto maximize efficiency. It consumes 8μA current.
MC74ACT273DWR2G Features
Tape & Reel (TR) package
74ACT series
20 pins
8 Bits
5V power supplies
MC74ACT273DWR2G Applications
There are a lot of ON Semiconductor MC74ACT273DWR2G Flip Flops applications.
- Computers
- Shift registers
- Bus hold
- Buffered Clock
- Memory
- Supports Live Insertion
- Consumer
- Reduced system switching noise
- Convert a momentary switch to a toggle switch
- CMOS Process
