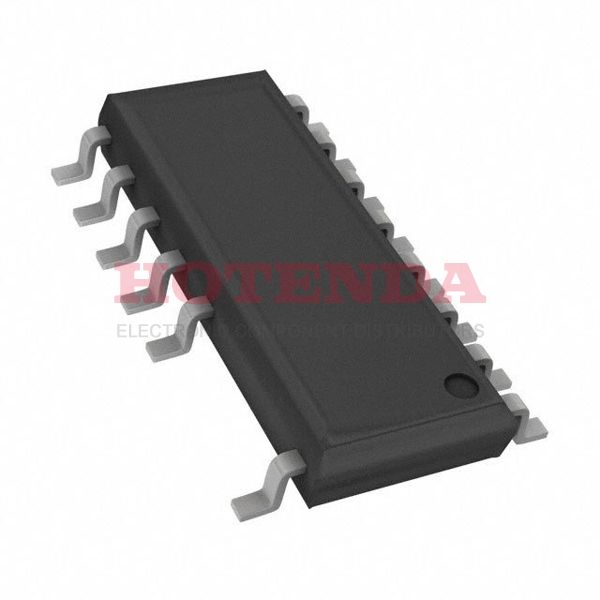

MC33364D Overview
This ac to dc converter is embedded in package 16-SOIC (0.154, 3.90mm Width), 14 Leads .In Tube AC/DC power converter, it is available.In this case, the AC/DC converter is mounted in the way of Surface Mount .The ac dc converter needs to be operated at -25°C~125°C TA °C in order to perform.A SWITCHING CONTROLLER analog integrated circuit is used in this AC DC converter.As soon as the switching frequency reaches 126kHz , the circuit is closed.As long as the supply voltage (Vcc/Vdd) is within the range of 7.6V~16V , the AC/DC converter may be used.As a result, it has had 14 terminations.In this ac/dc converter, there are 14 pins.The ac dc converters is suitable for mounting by Surface Mount .It belongs to a manufacturer family of GreenLine? .Similar acdc converters can be found using the MC33364 family.There are 1 outputs to run.Switching Regulator or Controllers includes the ac to dc conversions.We are setting the output current to 600mA .Its output voltage amounts to 5.2V .It is possible to ensure a maximum value of 20V for the input voltage using a unique technique.As soon as the supply voltage drops to 16V , the interface IC conducts.
MC33364D Features
Packaged with 16-SOIC (0.154, 3.90mm Width), 14 Leads
Switching Frequency at 126kHz
With 14 pins
Output Current at 600mA
Operating Supply Voltage at the range of 16V
MC33364D Applications
There are a lot of ON Semiconductor MC33364D AC DC Converters applications.
- Open Frame Switching Power Supply
- Smartphones
- Appliances
- Industrial controls
- Linear Adapter Replacements
- Adaptors for DSCs
- Battery chargers for mobile devices with touchpad display
- Adapter/Charger for Cell
- MP3
- Automotive Infotainment
