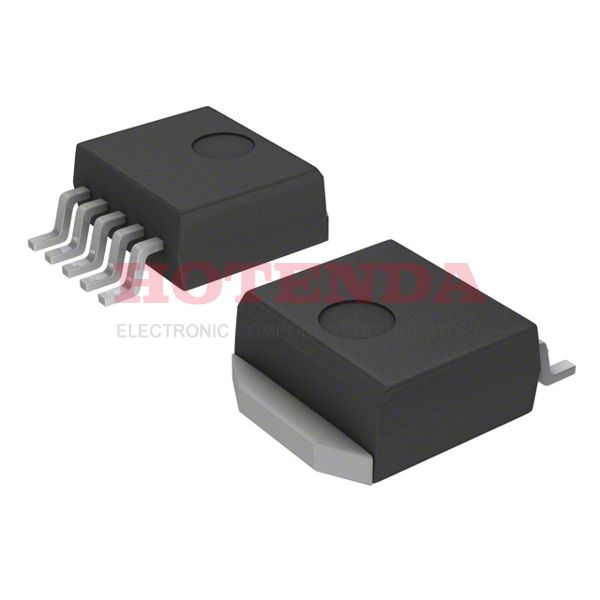

Name: MC33166D2TR4
Brand: ON Semiconductor
SKU: MC33166D2TR4
Availability: InStock

MC33166D2TR4

Manufacturer part number:MC33166D2TR4

Manufacturer:ON Semiconductor

Description:5 Terminals 7.5V 5-Pin MC33166 DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 72kHz Tape & Reel (TR) 3.3A Switch TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Case Package:SOT-23

Datasheet:MC33166D2TR4 Datasheet PDF

RoHs Status:non-compliant

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Number of Pins	5
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Published	2005
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	5
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn/Pb)
Subcategory	Switching Regulator or Controllers
Technology	BIPOLAR
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	MC33166
Function	Step-Up, Step-Down
Number of Outputs	1
Output Voltage	40V
Output Type	Adjustable
Voltage - Input (Min)	7.5V
Input Voltage-Nom	12V
Analog IC - Other Type	SWITCHING REGULATOR
Output Configuration	Positive or Negative
Current - Output	3.3A Switch
Voltage - Output (Min/Fixed)	5.05V
Topology	Buck, Boost
Control Mode	VOLTAGE-MODE
Frequency - Switching	72kHz
Control Technique	PULSE WIDTH MODULATION
Synchronous Rectifier	No
Voltage - Output (Max)	40V Switch
Height Seated (Max)	4.826mm
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

MC33166D2TR4 Product Details

MC33166D2TR4 Overview

optimized performance is achieved by utilizing the Tape & Reel (TR) package in this voltage regulator. In this voltage regulator, 5 terminations are present. There is one type of analog IC that this voltage regulator is equipped with, and that is the SWITCHING REGULATOR type. Due to DC DC switching regulator's space saving design, this voltage regulator is available in a TO-263-6, D2Pak (5 Leads + Tab), TO-263BA package. There are 1 outputs configured on this voltage regulator 12v. This DC DC switching regulator generates Adjustable output on its output pins. The voltage regulator 12v fits the Surface Mount mounting hole. This voltage regulator 12v should operate at a temperature of -40°C~85°C TA when operating. There is a switching frequency of 72kHz for this voltage regulator 12v. A dc to dc voltage regulator's minimum input voltage of 7.5V is required for this voltage regulator to operate. The output voltage of this voltage regulator (Min/Fixed) amounts to 5.05V volts. This voltage regulator 12v offers maximum design flexibility with an output current of 3.3A Switch. Its 240 peak reflow temperature makes this regulator essentially indestructible. As a result of DC DC switching regulator's design, it is designed to provide an input voltage of 12V for the purposes of operation. The regulator voltage is included in the Switching Regulator or Controllers subcategory of voltage regulators. In this case, the DC/DC regulator belongs to the family MC33166. At 40V volts, voltage regulator can provide voltage. There are 5 pins used for switching regulator operation. 40V Switch's maximal output voltage allows adjusting voltage regulator to operate easily.
