LM2931AZ5 Overview

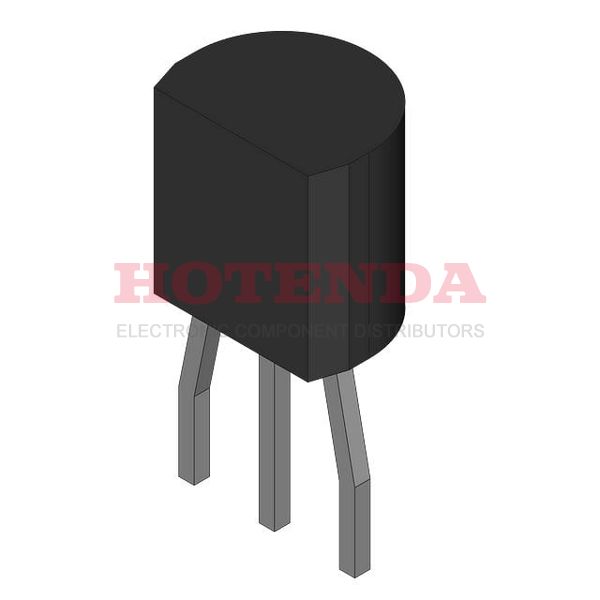

A Bulk case is used to deliver the Voltage Regulated IC. A TO-226-3, TO-92-3 (TO-226AA) case is used for packaging. As you can see, the IC chip has 3 terminations. Regulator IC chip's output type is Fixed. The electronic part implements 1 regulators in total. In this Regulator IC chip, the operating temperature of Through Hole varies. -40°C~125°C degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Positive. As far as its current output is concerned, it stands at 100mA. There are 3 pins in total in this voltage regulator IC. It has 1 outputs to ensure that the performance of this regulator is prompt and sufficient. The dropout voltage of the regulator IC is 10 volts. 3 pins are on the chip. For your information, this regulator's basic part number is LM2931. There is a way of packing the regulator that is called RAIL. It operates in the 1mA Quiescent Current state.
LM2931AZ5 Features
100mV dropout voltage
RAIL method of packing
LM2931AZ5 Applications
There are a lot of ON Semiconductor
LM2931AZ5 Linear Voltage Regulators applications.
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
