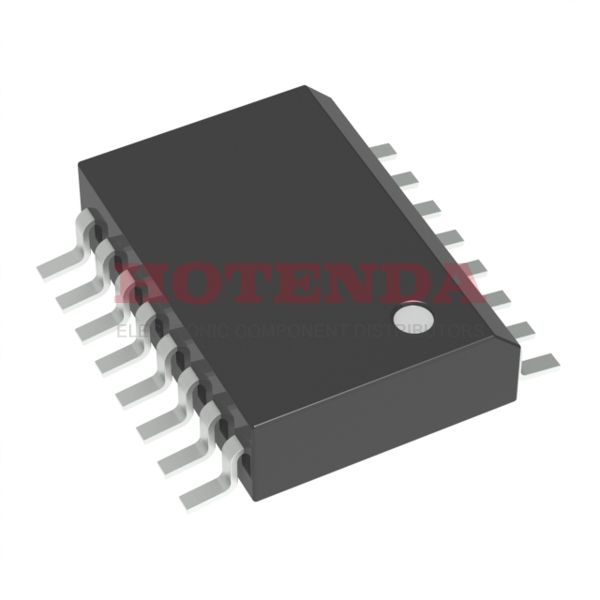

Name: LM2574DW-ADJ
Brand: ON Semiconductor
SKU: LM2574DW-ADJ
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Lifecycle Status	OBSOLETE (Last Updated: 2 weeks ago)
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295, 7.50mm Width)
Number of Pins	16
Operating Temperature	-40°C~125°C TJ
Packaging	Tube
Published	2005
JESD-609 Code	e0
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn/Pb)
Subcategory	Switching Regulator or Controllers
Technology	BIPOLAR
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
[email protected] Reflow Temperature-Max (s)	30
Base Part Number	LM2574
Function	Step-Up, Step-Down, Step-Up/Step-Down
Number of Outputs	1
Voltage - Input (Max)	40V
Output Voltage	37V
Output Type	Adjustable
Voltage - Input (Min)	4.75V
Input Voltage-Nom	12V
Analog IC - Other Type	SWITCHING REGULATOR
Output Configuration	Positive or Negative
Current - Output	500mA
Voltage - Output (Min/Fixed)	1.23V
Topology	Buck, Boost, Buck-Boost
Control Mode	VOLTAGE-MODE
Frequency - Switching	52kHz
Control Technique	PULSE WIDTH MODULATION
Synchronous Rectifier	No
Height Seated (Max)	2.65mm
Width	7.5mm
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

LM2574DW-ADJ Product Details

LM2574DW-ADJ Overview

For optimal performance, this voltage regulator makes use of the Tube package. There are 16 terminations in this harley voltage regulator. As a matter of fact, the type of analog IC that this voltage regulator 12v is equipped with is called SWITCHING REGULATOR. Space-saving 16-SOIC (0.295, 7.50mm Width) packages are available for this harley voltage regulator. In this case, DC DC switching regulator has 1 outputs configured to it. The adjusting voltage regulator generates Adjustable output. A voltage regulator 12v such as this one fits the Surface Mount mounting bracket. -40°C~125°C TJ should be the operating temperature when voltage regulator is operating. 52kHz is the switching frequency of this DC-DC switching regulator. There is no dc to dc voltage regulator's minimum input voltage requirement for this regulator. There is a adjusting voltage regulator's voltage output (Min/Fixed) of 1.23V. DC DC switching regulator's maximum design flexibility comes from its output current of 500mA. Voltage regulators' input voltage is limited to 40V. The peak reflow temperature of this regulator amounts to 240 to be essentially indestructible. To meet the switching regulator operation requirements, a nominal input voltage of 12V is provided. DC DC switching regulator is part of the Switching Regulator or Controllers subcategory and can be found in the Switching Regulator or Controllers category. The LM2574 family of DC/DC regulators includes this DC/DC regulator. Voltage regulator is capable of giving voltage at 37V volts. In order to operate voltage regulator, there are 16 pins that must be connected.
