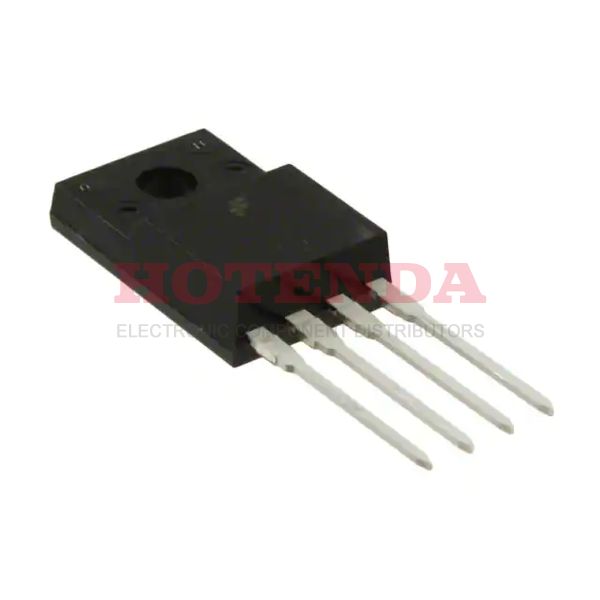

KA5H0380RTU Overview
There is a ac to dc converter embedded in package TO-220-4 Full Pack .The AC/DC power converter type is Tube .It is mounted in the way of Through Hole .To deliver its performance, the ac dc converter should be operated at a temperature of -40°C~85°C TA .The AC DC converter utilizes a type SWITCHING REGULATOR analog IC.In this AC to DC transformer, the switching frequency is 100kHz .A range of 9V~30V supply voltages (Vcc/Vdd) can be used.As a result, it has a total of 4 terminations.There are 4 pins on the ac/dc converter.It is suitable for mounting by Through Hole .This AC to DC converter belongs to the FPS? family of manufacturers.It is possible to search for similar acdc converters by using the KA5H0380 family.AC to DC converter is set to 3A for the output current.It produces a voltage of 800V .Interface ICs conduct when the supply voltage is 30V .There is a maximum supply current of 12mA that AC to DC converter can handle.Currently, there are 1 channels available.A measurement of the resistance of this power AC DC indicates that it is 5Ohm .It is possible to use the AC to DC power converter with a maximum output power of 18W .
KA5H0380RTU Features
Packaged with TO-220-4 Full Pack
Switching Frequency at 100kHz
With 4 pins
Output Current at 3A
Operating Supply Voltage at the range of 30V
With 1 channels on it
Resistance : 5Ohm
KA5H0380RTU Applications
There are a lot of ON Semiconductor KA5H0380RTU AC DC Converters applications.
- Appliance Power Supplies
- AC?DC USB chargers for Cameras
- Wireless System
- Power adapters for network devices
- Adapter/Charger for Cell
- Chargers for cell/cordless phones
- SMPS house keeping power supplies
- Standby Power Supply
- Standby and Auxiliary Power Supplies Set Top Boxes (STB)
- Replacements for bulky plug-in transformers
