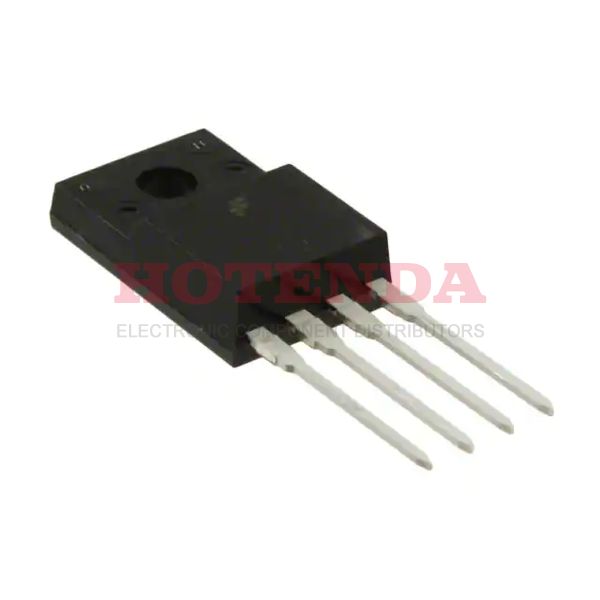

KA5H0365RTU Overview
In the package TO-220-4 Full Pack , the ac to dc converter is embedded.The AC/DC power converter type is Tube .It is mounted in the way of Through Hole .The ac dc converter should be operated at a temperature of -40°C~85°C TA °C to deliver its optimal performance.Analog IC type SWITCHING REGULATOR is utilized in this AC DC converter.When the switching frequency reaches 100kHz , the process is complete.A range of 9V~30V supply voltages (Vcc/Vdd) can be used.There are a total of 4 terminations in it.Approximately 4 pins are present on the ac/dc converter.The ac dc converters are suitable for mounting by Through Hole .This AC to DC converter belongs to the FPS? family of manufacturers.The KA5H0365 family allows you to search for similar acdc converters.A total of 1 outputs need to be run.It has been set to 3A for the output current.The output voltage of the AC/DC converter is 650V .You may read the REACH SVHC standard at No SVHC .The interface IC conducts when the supply voltage is 30V .The maximum supply current AC to DC converter can handle is 12mA .It is possible to determine the resistance of this power AC DC to be 4.5Ohm .The AC to DC power converter is capable of operating at a maximum output power of 19W .
KA5H0365RTU Features
Packaged with TO-220-4 Full Pack
Switching Frequency at 100kHz
With 4 pins
Output Current at 3A
Operating Supply Voltage at the range of 30V
Resistance : 4.5Ohm
KA5H0365RTU Applications
There are a lot of ON Semiconductor KA5H0365RTU AC DC Converters applications.
- SMPS house keeping power supplies
- Power tools
- Standby Power Supplies
- Laptops
- Standby power supplies for VCR
- Adapter/Charger for Cell
- Auxiliary Power Supply
- Replacements for bulky plug-in transformers
- Battery chargers for cellular phones
- Linear Adapter Replacements
