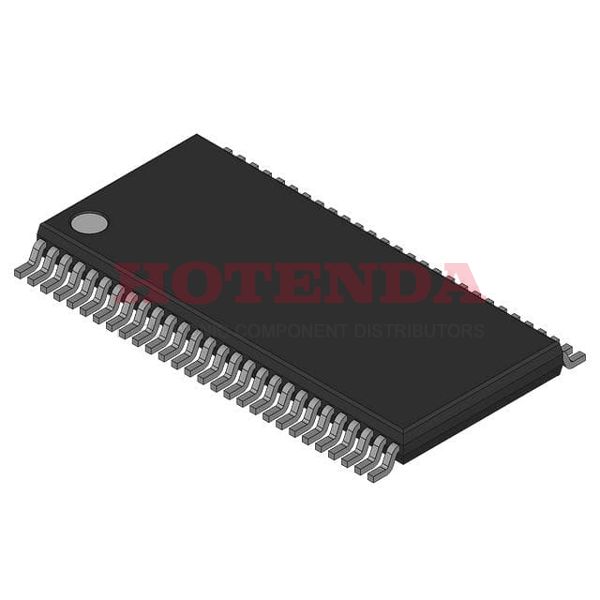

FST16232MTDX Overview
As a means of saving space, digital switch is provided in the 56-TFSOP (0.240, 6.10mm Width).Tape & Reel (TR) is the packaging method.The method digital switch ic adopts for mounting is Surface Mount.In the multiplexers, the analog IC Multiplexer/Demultiplexer is used.The operating temperature will not be affected by external factors when turn signal switch is set to -40°C~85°C.Designers have greater flexibility using digital controlled switch when it works with 4V~5.5V voltage.The base part number is 16232, which can also be used to find its logic switch related parts.There is a type of supply Single that is employed in this case.A total of 56 pins are configured on this board.The mounting point is Surface Mount.Signal multiplexer consists of 32 bits.Without the influence of external factors, it consumes 3μA current of multiplexer ic.Supply voltages of 5V can provide reliable performance of the multiplexers.The multiplexers have 32 input lines used to accept voltage levels.As the signal source, there are 16 output lines.The maximum temperature for this signal switch is 85°C.In order to maintain a minimal operating temperature, the temperature of the multiplexer should be set to -40°C.It is specified that the signal switches should operate at 5.5V as its maximum supply voltage.Device specifications require that the minimum supply voltage is 4V.The mux switch configuration consists of 1 elements.
FST16232MTDX Features
Supplied in the 56-TFSOP (0.240, 6.10mm Width) package
Adopting a supply type of Single
Operating with the supply voltage of 5V
32 input lines
16 output lines
FST16232MTDX Applications
There are a lot of ON Semiconductor FST16232MTDX Signal Switches / Multiplexers / Decoders applications.
- Memory chips
- Night vision cameras
- Recording transmission
- Home automation system
- Enabling block of memory depending on address in memory chips
- Arithmetic Logic Units
- Enabling different rows of memory depending on address in memory chips
- Relay
- Robotic vehicles
- Idle motor
