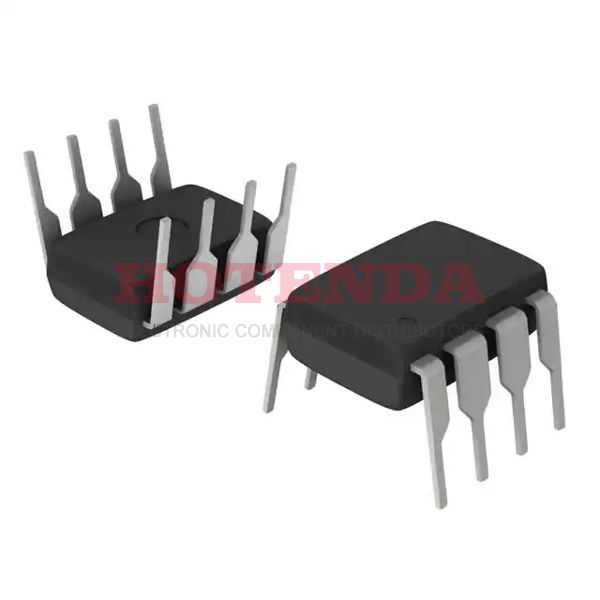

FSQ0265RN Overview
A ac to dc converter of the package 8-DIP (0.300, 7.62mm) contains the ac to dc converter.You can get it in AC/DC power converter Tube .As you can see, this AC/DC converter is mounted in the way of Through Hole .For the ac dc converter to perform properly, it should be operated at a temperature of -40°C~85°C TA °C.Analog ICs of type SWITCHING REGULATOR are used in this AC DC converter.There is 55kHz~67kHz switching frequency.This AC/DC converter is designed for use within the range of 8V~20V supply voltage (Vcc/Vdd).In total, it has 8 terminations.A ac/dc converter with 8 pins is available.It are possible to mount thare ac dc converters by Through Hole .It belongs to the family of FPS? manufacturers.If you select the FSQ0265 family, you will be able to search for similar acdc converters.There are 1 outputs to be processed.The ac to dc conversions are contained in Switching Regulator or Controllers .The output current is set to 1.06A .There is 700V output voltage from this AC/DC converter.High efficiency can be achieved when AC to DC converters frequency is set to 55.6kHz .Here is the standard for REACH SVHC : No SVHC .Coverters generate 20W as their output power.The maximum supply current AC to DC converter can handle is 5mA .The resistance of this power AC DC is 6Ohm .The AC to DC power converter can be used with the max output power of 16W .
FSQ0265RN Features
Packaged with 8-DIP (0.300, 7.62mm)
Switching Frequency at 55kHz~67kHz
With 8 pins
Output Current at 1.06A
Resistance : 6Ohm
FSQ0265RN Applications
There are a lot of ON Semiconductor FSQ0265RN AC DC Converters applications.
- MPS parts
- Standby and Auxiliary Power Supplies
- AC/DC Adaptors/Chargers for Cell Phones
- Standby power supplies for TV
- Remotely-controlled appliances
- AC?DC USB chargers for Tablets
- Standby Power Supplies
- Home Appliance Applications
- ZigBee
- Battery Chargers
