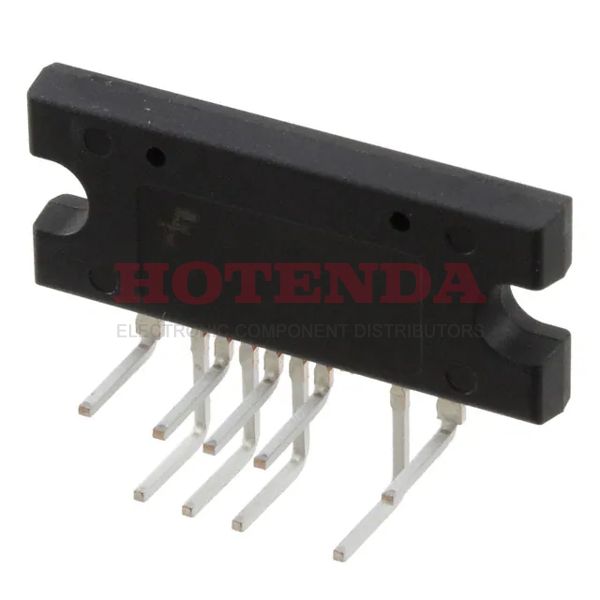

FSFR2100XSL Overview
In the 10-SIP Module, 9 Leads, Formed Leads package, the ac to dc converter is embedded.Tube case is available for the ac dc converter.In this case, the AC/DC converter is mounted in the way of Through Hole .For the ac dc converter to perform at its best, it should be operated at a temperature of -40°C~130°C TJ °C.Switching frequency reaches Up to 300kHz Hz.Supply voltage (Vcc/Vdd) does not need to exceed 10V~25V .As a result, it has had 9 terminations.On the ac/dc converter, there are 9 pins.Through Hole are the recommended mounting method for the ac dc converters.This AC to DC converter belongs to the FSFR-XS manufacturer family.A similar acdc converter can be searched by using the FSFR2100 family.The number of outputs to run is 1 .We are setting the output current to 10.5A .180W is the output power of a coverter.There is a maximum current limAC to DC converter of 9mA for the supply.
FSFR2100XSL Features
Packaged with 10-SIP Module, 9 Leads, Formed Leads
Switching Frequency at Up to 300kHz
With 9 pins
Output Current at 10.5A
FSFR2100XSL Applications
There are a lot of ON Semiconductor FSFR2100XSL AC DC Converters applications.
- Cleaners
- ATX/BTX Auxiliary Power
- Off--line Battery Charger
- Adaptors for Portable Media Player
- Battery Chargers
- AC?DC USB chargers for Tablets
- Low power ac?dc Adapters for Chargers
- Low-Voltage I/O System Power
- AC?DC USB chargers for Cameras
- Linear Adapter Replacements
