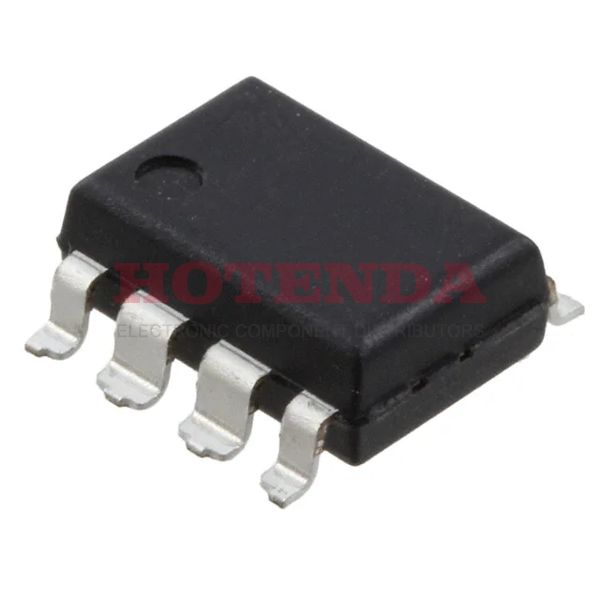

FSDH321L Overview
A ac to dc converter of the package 8-SMD, Gull Wing contains the ac to dc converter.In Tube case, the ac dc converter is available.It is mounted in the way of Surface Mount .This ac dc converter should be operated at a temperature of -25°C~85°C TA °C so that it can deliver its performance.When the switching frequency reaches 100kHz , the circuit is closed.The voltage range of the supply can be set to 8V~20V (Vcc/Vdd).Approximately 8 pins are present on the ac/dc converter.Surface Mount is a suitable mounting point for the ac dc converters.Currently, it is acdc converter of the manufacturer family of FPS? .If you select the FSDH321 family, you will be able to search for similar acdc converters.A total of 1 outputs are to be processed.2A is set as the output current.The package contains 8-LSOP AC/DC converters.There is a maximum current limAC to DC converter of 3mA for the supply.As long as 85°C is set to its maximum value, the AC to DC power converter will run steadily.A minimum working temperature of -25°C is required for this isolated switch.It can be determined that the resistance of this power AC DC is 14Ohm .AC to DC converter consumes quiescent current at 3mA .
FSDH321L Features
Packaged with 8-SMD, Gull Wing
Switching Frequency at 100kHz
With 8 pins
Output Current at 2A
Resistance : 14Ohm
FSDH321L Applications
There are a lot of ON Semiconductor FSDH321L AC DC Converters applications.
- AC/DC Adaptors/Chargers for E-books
- Adapter/Charger for Cordless Phones
- Standby Power Supply
- Adapter/Charger for Cell
- Appliances
- Shaver Charger
- Home appliances
- Battery chargers for smart phones
- Industrial controls
- DVD players
