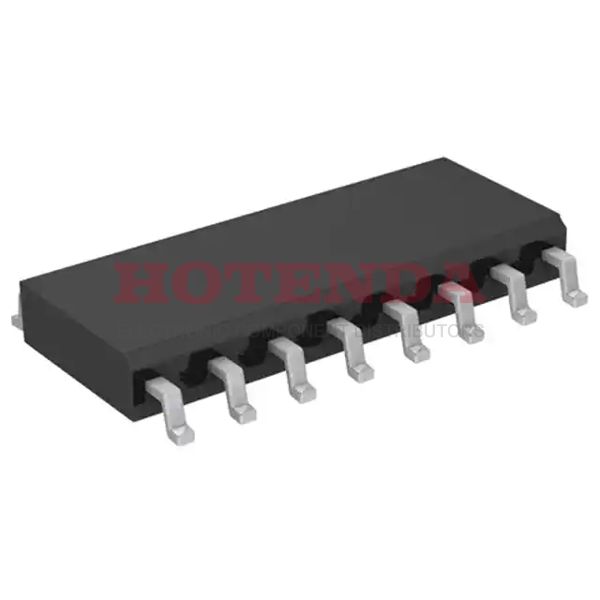

FS6131-01G-XTD Overview
Clock ICs are packaged using the Tube method. 16-SOIC (0.154, 3.90mm Width) contains this Clock PLL. It contains a total of 16 terminations within RF synthesizer. Basically, this time clock generator needs a voltage of 5V. This clock generator receives its inputs from Crystal, which is designed to be the clock source. 1 circuits are implemented to access the electronic component's full performance. This clock-based frequency generator provides a frequency up to 230MHz Max. Because of the Surface Mount, clock PLL can be easily mounted on the panel. Clock PLL works with 4.5V~5.5V supply voltage provided. Using the test statistics, it is estimated that the ambient temperature should be set to 0°C~70°C. CMOS, PECL logic levels are supported by this RF synthesizer. This electronic component is usually classified as a PLL Clock Generator component. In particular, this clock PLL is designed to be used with microprocessors. According to the base part number FS6131, its related parts can be found. A 16 pin is available on the PLL. RF synthesizers can handle a voltage of 5V as the supply voltage. By operating at a frequency of 28MHz, frequency generator is able to achieve high efficiency. A supply current of 100mA is required to fully operate clock PLL. The clock PLL here has 2 elements and has a very low jitter performance.
FS6131-01G-XTD Features
Available in the 16-SOIC (0.154, 3.90mm Width)
Supply voltage of 5V
Operating supply voltage of 5V
FS6131-01G-XTD Applications
There are a lot of ON Semiconductor FS6131-01G-XTD Clock Generators applications.
- Frequency synthesis
- Remote telemetry and instrumentation
- Wi-Fi routers
- Automatic control system test
- Digital circuits
- High-speed optical transport network (OTN)
- Aerospace and defense
- Microprocessor clock multipliers
- Telecommunication systems
- Clock synchronization
