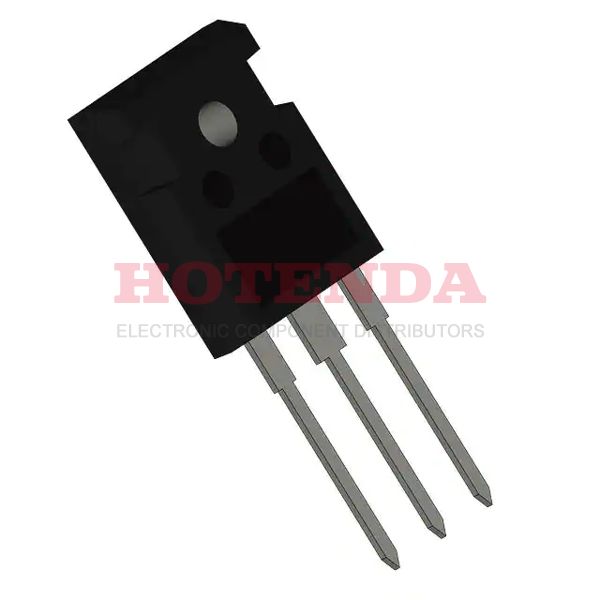

FCH47N60

Manufacturer part number:FCH47N60

Manufacturer:ON Semiconductor

Description:FCH47N60 datasheet pdf and Transistors - FETs, MOSFETs - Single product details from ON Semiconductor stock available on our website

Case Package:SOT-23

Datasheet:FCH47N60 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-247-3
Transistor Element Material	SILICON
Operating Temperature	-55°C~150°C TJ
Packaging	Tube
Published	2004
Series	SuperFET™
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Additional Feature	AVALANCHE RATED
Subcategory	FET General Purpose Power
Voltage - Rated DC	600V
Technology	MOSFET (Metal Oxide)
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Current Rating	47A
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	FCH47N60
JESD-30 Code	R-PSFM-T3
Qualification Status	Not Qualified
Number of Elements	1
Power Dissipation-Max	417W Tc
Element Configuration	Single
Operating Mode	ENHANCEMENT MODE
Power Dissipation	417W
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	70m Ω @ 23.5A, 10V
Vgs(th) (Max) @ Id	5V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	8000pF @ 25V
Current - Continuous Drain (Id) @ 25°C	47A Tc
Gate Charge (Qg) (Max) @ Vgs	270nC @ 10V
Rise Time	210ns
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	±30V
Fall Time (Typ)	75 ns
Turn-Off Delay Time	520 ns
Continuous Drain Current (ID)	47A
JEDEC-95 Code	TO-247AB
Gate to Source Voltage (Vgs)	30V
Drain-source On Resistance-Max	0.07Ohm
Drain to Source Breakdown Voltage	600V
RoHS Status	RoHS Compliant
Lead Free	Lead Free

FCH47N60 Product Details

FCH47N60 Description

FCH47N60 is a 600v N-Channel SuperFET? MOSFET. This onsemi FCH47N60 is tailored to minimize conduction loss, provide superior switching performance, dv/dt rate, and higher avalanche energy. Consequently, SuperFET MOSFET is very suitable for switching power applications such as PFC, server/telecom power, FPD TV power, ATX power, and industrial power applications.
