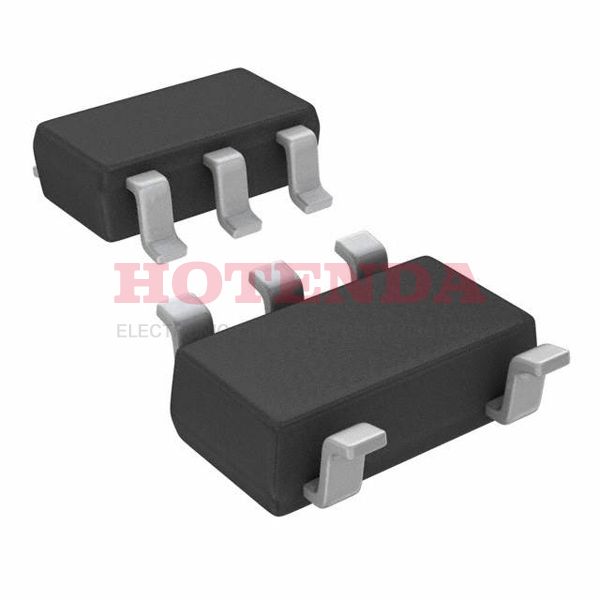

FAN2500S25X Overview
An Tape & Reel (TR) case is included with the delivery. There is a SOT-23-5 case with the integrated voltage regulator. There are 5 terminations on the battery regulator IC chip and each of them has its own function. In terms of output type, Fixed is what the Regulator IC produces. In order to ensure prompt, adequate, and prompt performance, this regulator has 1 outputs in total. In terms of its dropout voltage, it is 10 volts. There are 5 pins on the chip. In this instance, we are dealing with a typical Other Regulators-shaped component. In order to pack the regulator, the method is TAPE AND REEL. In order to meet the operating requirements of the regulator, its maximal output current reaches 100mA. It operates in the 1μA Quiescent Current state. Utilize the regulator IC when the temperature is below 125°C. It is recommended that the chip be operated at a temperature no lower than -40°C operating temperature.
FAN2500S25X Features
100mV dropout voltage
Other Regulators subtageroy
TAPE AND REEL method of packing
The maximum operating temperature of -40°C
FAN2500S25X Applications
There are a lot of ON Semiconductor
FAN2500S25X Linear Voltage Regulators applications.
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
