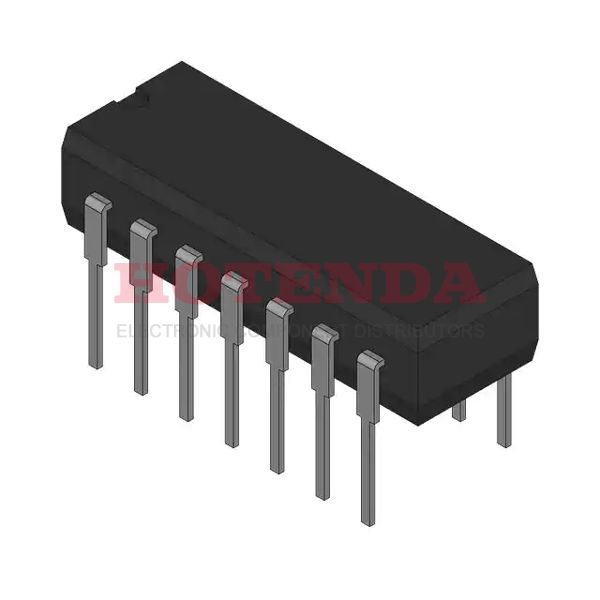

DM74ALS00AN Overview
This part is conveniently packaged in 14-DIP (0.300, 7.62mm), making it easy to ship abroad. This high-reliability packaging method uses advanced packaging methods Tube. NAND Gate logic governs its operation. Voltage 4.5V~5.5V ensures the part's full functionality. Operation at a temperature around 0°C~70°C. A Through Hole mount is used for this part. Current output is 400μA 8mA in both the high and low states. The number 74ALS refers to it. Search with 74ALS00 if you are looking for device variants. It is widely used in a variety of applications due to its Through Hole mounting. To find out what the 14 pins do, please refer to the datasheets. As of 2, the part supports 2 inputs. Parts that are quiescent have 1.6mA current flowing through them. 4 circuits are used in this device. Current output of the device is rated at 8mA. As part of the device, there are 1 outputs. The total number of elements used for operation is 4. It is specified in the operating instructions of the chip that the operating voltage will be 5V volts. An operation based on gates of 4. Suppliers offer package 14-PDIP. When the device is operating in a temperature environment higher than that of 70°C, it should be turned off. It is estimated that the minimal operating temperature of the part is 0°C. It is recommended that users do not supply the device with voltages greater than 5.5V under normalcircumstances. The lowest voltage the part should receive is 4.5V.
DM74ALS00AN Features
NAND Gate Logic Type
Operating Temperature: 0°C~70°C
Quiescent Current: 1.6mA
Output Current: 8mA
4 Gates
DM74ALS00AN Applications
There are a lot of ON Semiconductor
DM74ALS00AN Gates and Inverters applications.
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
- Illumination
