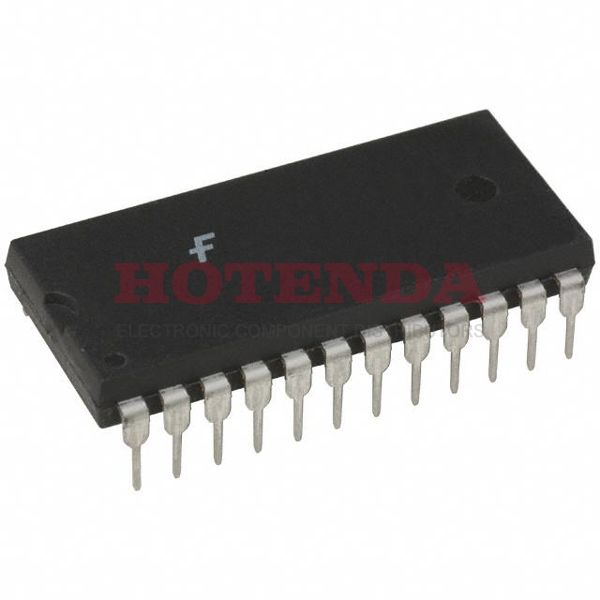

DM74150N Overview
This is a relatively small item of digital switch that is included in the 24-DIP (0.600, 15.24mm) in order to save space on the board.As a result, it is packaged in the way of Tube.For mounting, digital switch ic uses the method Through Hole.For the analog part of the multiplexers, an IC Multiplexer is used.When the operating temperature is kept at 0°C~70°C, turn signal switch will not be susceptible to external factors.When digital controlled switch operates at 4.75V~5.25V, designers have superior flexibility.In addition to being a member of the 7400 series, these multiplexers have a wide range of applications.Its logic switch base part number is 74150 which can also be used to find its logic switch related parts.
DM74150N Features
Supplied in the 24-DIP (0.600, 15.24mm) package
DM74150N Applications
There are a lot of ON Semiconductor DM74150N Signal Switches / Multiplexers / Decoders applications.
- Image transmission
- Automatic Monitoring systems
- Small scale TV wall
- VGA
- Code converters
- To select different devices in microprocessor input
- Seven segment displays
- Data communication
- Solenoid cooling fan
- Audio transmission
