Name: CS8151YDWFR16
Brand: ON Semiconductor
SKU: CS8151YDWFR16
Availability: InStock

new-10%

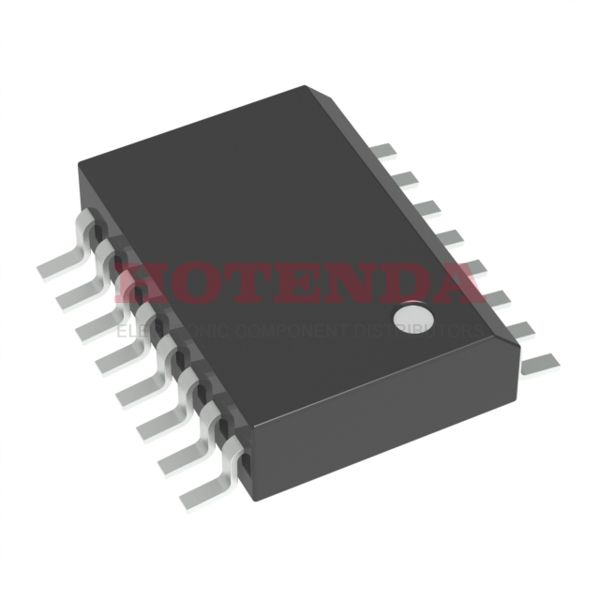

CS8151YDWFR16

Manufacturer part number:CS8151YDWFR16

Manufacturer:ON Semiconductor

Description:Reset, Wake-Up, Watchdog Fixed CS8151 PMIC 16 16-SOIC (0.295, 7.50mm Width)

Case Package:SOT-23

Datasheet:CS8151YDWFR16 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	OBSOLETE (Last Updated: 1 week ago)
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295, 7.50mm Width)
Number of Pins	16
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Published	2007
JESD-609 Code	e0
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn80Pb20)
Packing Method	TAPE AND REEL
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Reach Compliance Code	not_compliant
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	CS8151
Pin Count	16
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	26V
Output Voltage	5V
Output Type	Fixed
Output Configuration	Positive
Control Features	Reset, Wake-Up, Watchdog
Output Voltage 1	5V
Input Voltage (Min)	6V
Voltage - Output (Min/Fixed)	5V
Number of Regulators	1
Protection Features	Over Temperature, Over Voltage, Short Circuit
Voltage Dropout (Max)	0.6V @ 100mA
PSRR	75dB (120Hz)
Dropout Voltage	400mV
Dropout Voltage1-Nom	0.4V
Voltage Tolerance-Max	3%
Min Current Limit	100mA
Input Bias Current	12mA
Height Seated (Max)	2.65mm
Width	7.5mm
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

CS8151YDWFR16 Product Details

CS8151YDWFR16 Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a 16-SOIC (0.295, 7.50mm Width) package. There are 16 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. IC voltage regulator has a sum of 16 pins. To ensure prompt, sufficient performance, this part features 1 outputs in total. Its dropout voltage is 10 volts. The component's pin number remains 16. FYI, the basic part number for this IC regulator is CS8151. The way of packing the voltage regulator IC is TAPE AND REEL.
