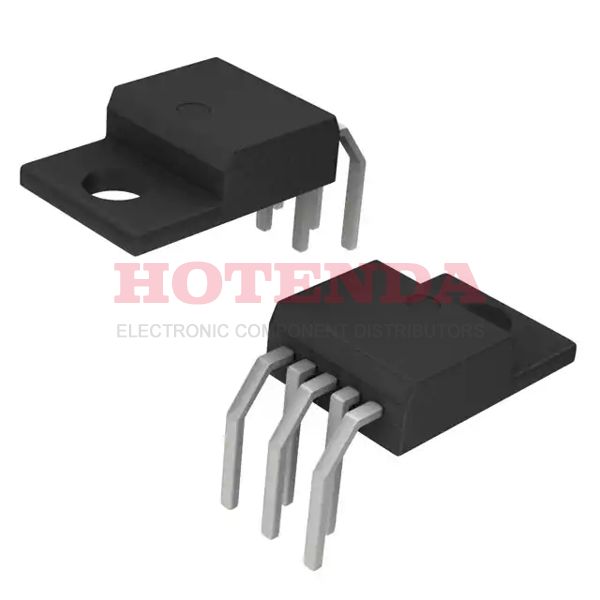

CS8101YTHA5 Overview
The package is delivered in a Tube case. In order to package the IC voltage regulator, a TO-220-5 Formed Leads case is used. On the Voltage regulator IC, there are 5 terminations that can be connected. This IC Regulator has a type of output called Fixed. There are 1 regulators implemented in this electroic component. Through Hole can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at -40°C~125°C degrees for it to function. As you can see, this regulator's output function is configured to be Positive. At present, it can produce an output of up to 100mA. A total of 5 pins are located on this chip, making it the size of a standard chip. The regulator has a total of 1 outputs to make sure that it delivers prompt, sufficient outputs. A dropout voltage of 10 volts is what makes it a dropout voltage. Depending on the chip, 5 pins may be available. For your information, part number CS8101 is the basic part number for this voltage regulator IC.
CS8101YTHA5 Features
400mV dropout voltage
CS8101YTHA5 Applications
There are a lot of ON Semiconductor
CS8101YTHA5 Linear Voltage Regulators applications.
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
- Measurement and control euipment
