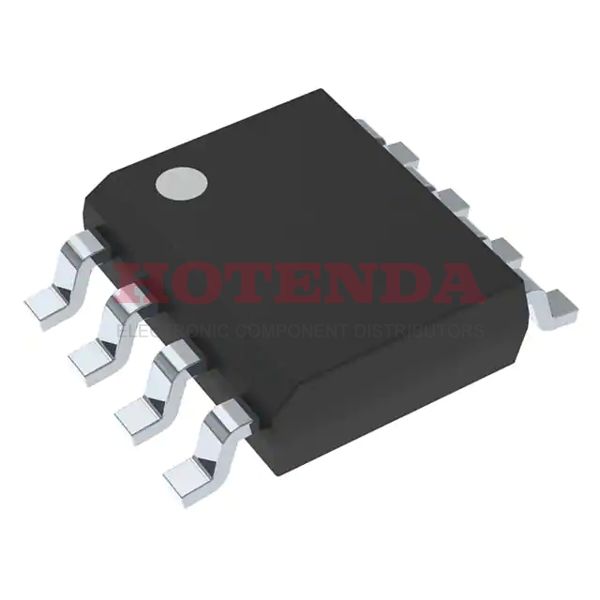

Name: CAT661EVA-T3
Brand: ON Semiconductor
SKU: CAT661EVA-T3
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154, 3.90mm Width)
Number of Pins	8
Packaging	Cut Tape (CT)
Published	2012
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Subcategory	Other Analog ICs
Technology	CMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Functions	1
Base Part Number	CAT661
Pin Count	8
Number of Outputs	1
Output Voltage	11V
Output Type	Adjustable
Input Voltage-Nom	5V
Temperature Grade	INDUSTRIAL
Max Supply Voltage	5.5V
Min Supply Voltage	1.5V
Analog IC - Other Type	SWITCHED CAPACITOR CONVERTER
Output Current	100mA
Logic Function	Inverting
Synchronous Rectifier	No
Switcher Configuration	DOUBLER INVERTER
Switching Frequency	135kHz
Length	4.9mm
Width	3.9mm
RoHS Status	RoHS Compliant

CAT661EVA-T3 Product Details

CAT661EVA-T3 Overview

As a result of the use of the Cut Tape (CT) package, the performance of this voltage regulator is optimized. Throughout this voltage regulator, there are 8 terminations. There are two types of analog ICs in this voltage regulator 12v: SWITCHED CAPACITOR CONVERTER ICs, which are the ones used in older voltage regulator 12vs. For space-saving purposes, this voltage regulator is available in the 8-SOIC (0.154, 3.90mm Width) package. 1 outputs of voltage regulator are configured. DC DC switching regulators like this one generate Adjustable outputs on their output pins to handle the power management. Surface Mount-mounting is compatible with this switching regulator. An input voltage of 5V is required to meet the requirements of the switching regulator operation. The regulator voltage is included in the Other Analog ICs subcategory of voltage regulators. DC/DC regulators such as this one belong to the CAT661 family of products. At 11V volts, voltage regulator can provide voltage. To operate the voltage regulator 12v, 8 pins are required. By requiring a minimum voltage of 1.5VV, adjusting voltage regulator reliable performance is guaranteed. Stable operation of switching regulator is possible because of the high operating temperature 85°C limit. A minimum operating temperature of -40°C is required to ensure harley voltage regulator's reliability. DC DC switching regulator can operate from a maximum supply voltage of 5.5V. With 8 pins, this voltage regulator is equipped with a number of features. With 135kHz voltage regulator's switching frequency, improved reliability can be achieved. There is normally a 100mA output current of DC DC switching regulator.
