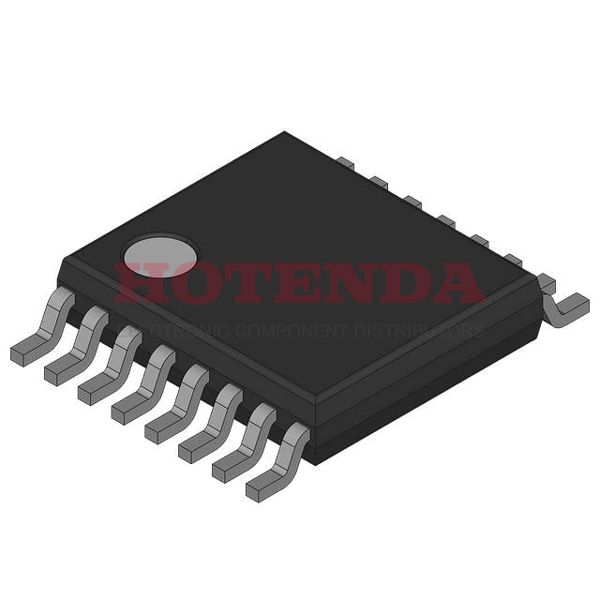

74VHC153MTCX Overview
For the purpose of saving board space, digital switch is included in the 16-TSSOP (0.173, 4.40mm Width).The package is packaged in accordance with Tape & Reel (TR).The method digital switch ic adopts for mounting is Surface Mount.In the multiplexers, the analog IC is indicated by Multiplexer.Turn signal switch will not be susceptible to the external factors when the operating temperature is kept at -40°C~85°C.Designers have greater flexibility using digital controlled switch when it works with 2V~5.5V voltage.With the 74VHC series, the multiplexers are suitable for a diverse range of applications.Among its basic configurations are 16 terminations.There is a base part number 74VHC153 that can be used to locate signal switch's related components as well.The multiplexer is supplied with 3.3V voltage.As a result, GULL WING represents the end of the conductors.Its supply type is Single, which is used as the source of power.There are 16 pins on it.The mount is in Surface Mount.I would like to refer to the logic switch as a member of the AHC/VHC family.There are 2 bits in signal multiplexer.In order to prevent unnecessary failures, it is recommended that the minimal supply voltage (Vsup) be kept at 2V.It is advisable to keep the maximum supply voltage (Vsup) at 5.5V in order to prevent some unnecessary failures.The turn signal switch contains 1 outputs designed to operate.There are 8 inputs provided in this multiplexer.TAPE AND REEL is used to package the switches.In order to accept voltage levels, the multiplexers have input lines 4 on the board.
74VHC153MTCX Features
Supplied in the 16-TSSOP (0.173, 4.40mm Width) package
Adopting a supply type of Single
4 input lines
74VHC153MTCX Applications
There are a lot of ON Semiconductor 74VHC153MTCX Signal Switches / Multiplexers / Decoders applications.
- High-performance memory-decoding applications
- Automation system
- Logic gates for other digital devices
- To select different devices in microprocessor output
- Make full adder
- CNC machines
- Transmission from the computer system of a satellite
- Data-routing applications
- Enabling different rows of memory depending on address in memory chips
- Paper plants
