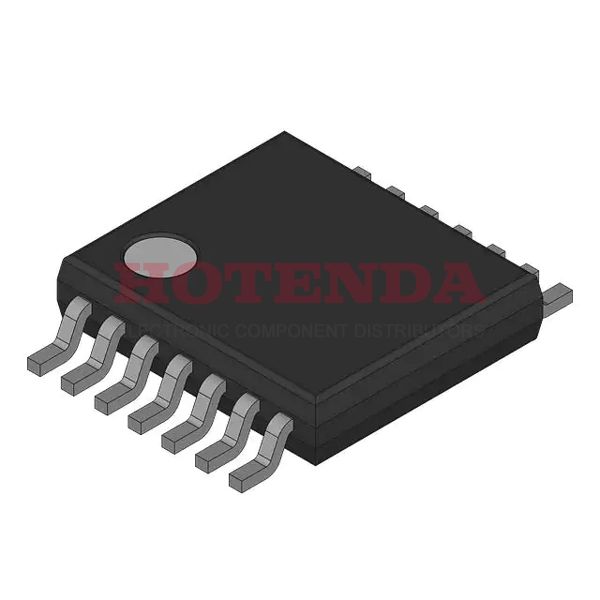

74VCX86MTCX Overview
The part comes in 14-TSSOP (0.173, 4.40mm Width) packaging, which makes it convenient to ship overseas. To ensure high reliability, a new packaging method Tape & Reel (TR) is used. A XOR (Exclusive OR) logic principle is used to make it work. It is necessary to ensure the full functionality of the part by providing a voltage of 1.2V~3.6V. Around -40°C~85°C is the extended operating temperature. There is a hole in Surface Mount for mounting the part. In both high and low states, output current is 24mA 24mA. This item is from the 74VCX series. In total, 14 terminations have occurred. This part is equipped with 4 functions that will greatly enhance the user's experience. It is part of the ALVC/VCX/A family of chips. 74VCX86 can help you find device variants. Many applications require the use of this logic device with its Surface Mount mounting. The datasheets for the 14 pins explain the functions. Inputs for this part are 2. Parts in quiescent state carry 20μA current. It has a capacitance of 30pF when loaded. Upon reaching 3.6V, the highest supply voltage (Vsup) is reached. Contains the industry TAPE AND REEL method. Power supplies required for this part are specified in the datasheet as 3.3V. This device has 1 outputs. The logic of 4 gates.
74VCX86MTCX Features
XOR (Exclusive OR) Logic Type
Operating Temperature: -40°C~85°C
ALVC/VCX/A Family
Quiescent Current: 20μA
4 Gates
