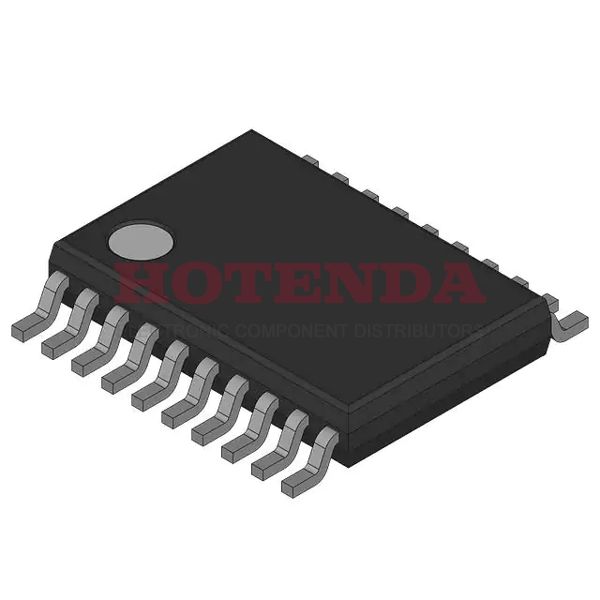

74LVX574MTC Overview
As a result, it is packaged as 20-TSSOP (0.173, 4.40mm Width). The package Tubecontains it. There is a Tri-State, Non-Invertedoutput configured with it. There is a trigger configured with Positive Edge. Surface Mountis occupied by this electronic component. A 2V~3.6Vsupply voltage is required for it to operate. It is operating at a temperature of -40°C~85°C TA. This logic flip flop is classified as type D-Type. FPGAs belonging to the 74LVXseries contain this type of chip. In order for it to function properly, its output frequency should not exceed 75MHz. A total of 1 elements are present. It consumes 4μA of quiescent current without being affected by external factors. The 74LVX574 family contains this object. The input capacitance of this T flip flop is 4pF farads, which is defined as the capacitance between the input terminals of an op amp with either input grounded. This electronic part is mounted in the way of Surface Mount. Basically, it is designed with a set of 20 pins. This device has Positive Edgeas its clock edge trigger type. Flip flops designed with 8bits are used in this part. Using 8 circuits, it is highly flexible. It is designed with 8 output lines. A total of 1input lines have been provided. -4mAis the output current at high level. 4mA is the low level output current. Ideally, the operating temperature should be lower than 85°C. Temperatures above -40°Cshould be used. Despite its minimal supply voltage of 2V, it is capable of operating. In this case, it supports a maximum supply voltage of 3.6V. This frequency can be achieved 125MHz.
74LVX574MTC Features
Tube package
74LVX series
20 pins
8 Bits
74LVX574MTC Applications
There are a lot of ON Semiconductor 74LVX574MTC Flip Flops applications.
- Power down protection
- Buffer registers
- Storage Registers
- Latch
- Shift registers
- Data storage
- Single Up Count-Control Line
- Cold spare funcion
- Set-reset capability
- Guaranteed simultaneous switching noise level
