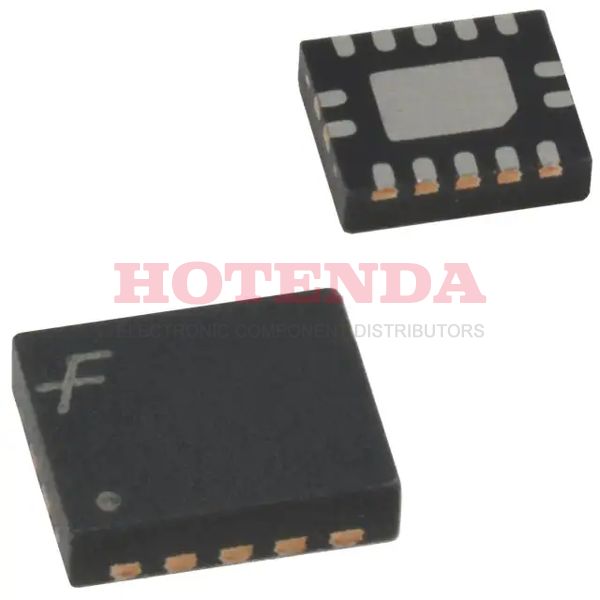

74LCX32BQX Overview
Due to its 14-VFQFN Exposed Pad packaging, the part is convenient for international shipping. High reliability is achieved by using advanced packaging method Tape & Reel (TR). OR Gate logic is the basis of its operation. This part needs a voltage of 2V~3.6V to function properly. An extended operating temperature of -40°C~85°C degrees Celsius. Part Surface Mount is mounted. High and low output current states are both 24mA 24mA. The series 74LCX contains it. Use 74LCX32 when searching for device variants. There are many applications for this logic device, mounted at Surface Mount. You can find the functions of the 14 pins in the datasheets. It supports inputs of 2. As the part is in a quiescent state, it has 10μA current flowing through it. A device with 1 outputs is available. The operation of 4 gates is logical.
74LCX32BQX Features
OR Gate Logic Type
Operating Temperature: -40°C~85°C
Quiescent Current: 10μA
4 Gates
74LCX32BQX Applications
There are a lot of ON Semiconductor
74LCX32BQX Gates and Inverters applications.
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
