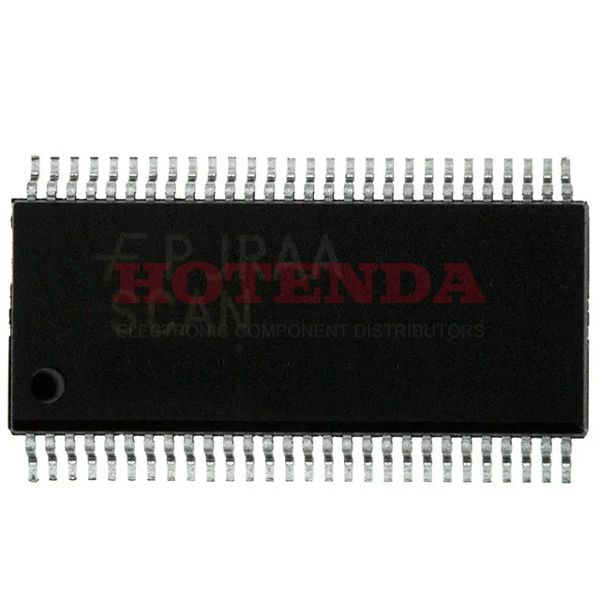

74LCX16841MEAX Overview
Package 56-BSSOP (0.295, 7.50mm Width) includes it. Tape & Reel (TR) is the way in which it is packaged. It uses Tri-State as its output configuration. This electrical device has a logic type of D-Type Transparent Latch. Electronic parts are mounted in accordance with Surface Mount. The voltage supply is 2V~3.6V. It operates at -40°C~85°C degrees Celsius. The 74LCX series is associated with this FPGA. An electronic part with 10 bits is designed. As far as this device is concerned, it has no terminations. The family it belongs to is 74LCX16841. The supply voltage of the device is 2.5V. It is part of the family of electronic devices called LVC/LCX/Z. This device has 2 ports. When Vsup reaches 3.6V, the maximal supply voltage is reached. If the supply voltage (Vsup) is greater than 2V, then the device is working correctly.
74LCX16841MEAX Features
56-BSSOP (0.295, 7.50mm Width) package
74LCX series
10 Bits
74LCX16841 family
74LCX16841MEAX Applications
There are a lot of ON Semiconductor 74LCX16841MEAX Latches applications.
- Audio and video switching
- Relay
- Relay replacement
- Double bus register system
- Bus system register with enable parallel lines at bus side
- OC-48 communication systems
- Counter
- Hammer
- Counting
- Buffer/Storage Registers
