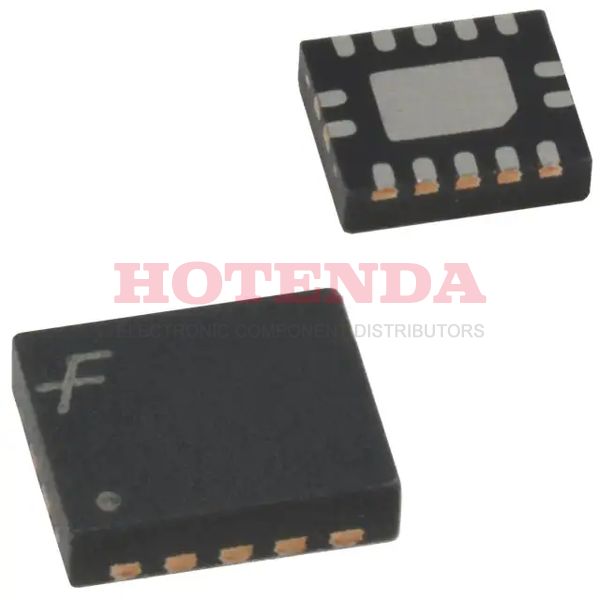

74LCX14BQX Overview
As the part is packed in 14-VFQFN Exposed Pad, international shipping is convenient. A high level of reliability can be achieved through the use of an advanced packaging method Tape & Reel (TR). This logic works according to the Inverter principle. Ensure the part's full functionality by setting the voltage to 2V~3.6V. Operating temperature extended to -40°C~85°C. It is mounted in position Surface Mount. 24mA 24mA is the output current's high and low states. 74LCX is its series number. Total terminations are 14. Users will benefit significantly from 6 functions in this part. There is a chip like this in LVC/LCX/Z. Trying searching with 74LCX14 will yield device variants. The logic device can be mounted on the Surface Mount axis and is used in a wide range of applications. Datasheets for 14 pin functions are available upon request. Quiescent parts carry 10μA current. Part now bears a 50pF load capacitance. The device must be supplied with a minimum voltage of 2V. In addition to this, it is packed with the industry TAPE AND REEL method. A 3.3V power supply is specified in the datasheet for this part. Gates with a 6 logic. A feature of it is Schmitt Trigger.
74LCX14BQX Features
Inverter Logic Type
Operating Temperature: -40°C~85°C
LVC/LCX/Z Family
Quiescent Current: 10μA
6 Gates
74LCX14BQX Applications
There are a lot of ON Semiconductor
74LCX14BQX Gates and Inverters applications.
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
