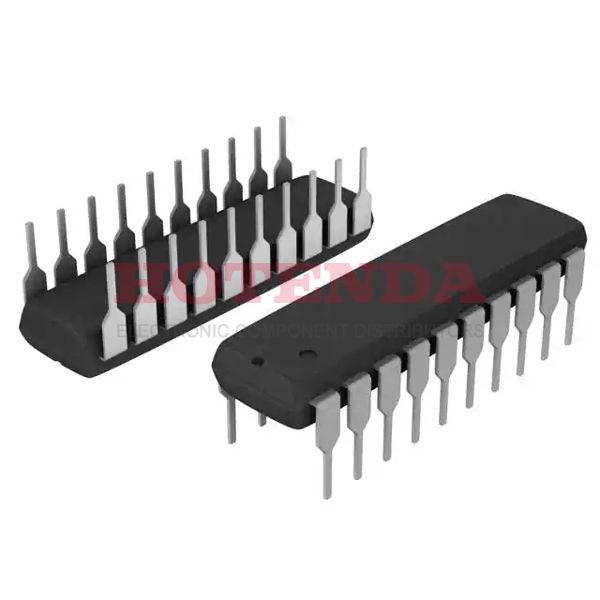

74F534PC Overview
20-DIP (0.300, 7.62mm)is the packaging method. It is contained within the Tubepackage. Currently, the output is configured to use Tri-State, Inverted. There is a trigger configured with Positive Edge. This electronic part is mounted in the way of Through Hole. A 4.5V~5.5Vsupply voltage is required for it to operate. It is operating at 0°C~70°C TA. The type of this D latch is D-Type. This type of FPGA is a part of the 74F series. Its output frequency should not exceed 100MHz. In total, there are 1 elements. There is a consumption of 86mAof quiescent energy. The 74F534 family contains this object.
74F534PC Features
Tube package
74F series
74F534PC Applications
There are a lot of ON Semiconductor 74F534PC Flip Flops applications.
- ESD performance
- Matched Rise and Fall
- Frequency Divider circuits
- Communications
- EMI reduction circuitry
- Divide a clock signal by 2 or 4
- Circuit Design
- Asynchronous counter
- Shift registers
- Data transfer
