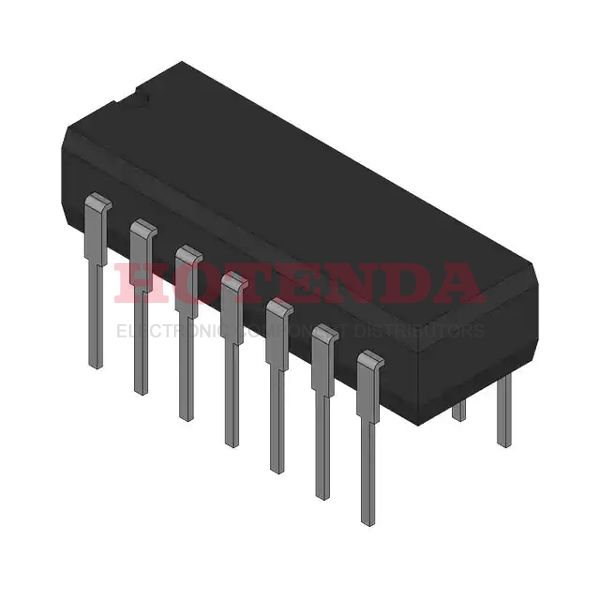

74AC02PC Overview
Shipping overseas is convenient with the part packed in 14-DIP (0.300, 7.62mm). High reliability is provided by advanced packaging method Tube. Based on the NOR Gate logic principle, it works. A voltage of 2V~6V is required for the part to function properly. Increasing operating temperature to around -40°C~85°C. In Through Hole, the part is mounted. There is 24mA 24mA output current in the high or low states. The 74AC series contains it. Try searching with 74AC02 if you're looking for device variants. This logic device is widely used in a wide variety of applications because it is Through Hole mounted. For functions related to 14 pins, please refer to the datasheets. 2 inputs are supported by the part. The part has 2μA current flowing through it in the quiescent state. There are 4 circuits in this device. There is 24mA output current rated for the device. The device has 1 outputs. The total number of elements used for operation is 4. Standby mode has a maximum current of 2μA. Operation through gates of 4. Suppliers offer a 14-PDIP package. When the temperature is higher than 85°C, the device should not be operated. Test statistics indicate that the minimum operating temperature of the part would be -40°C. A voltage higher than 6V should not be supplied to the device in normalcircumstances. 2V should be the lowest voltage fed to the part.
74AC02PC Features
NOR Gate Logic Type
Operating Temperature: -40°C~85°C
Quiescent Current: 2μA
Output Current: 24mA
4 Gates
