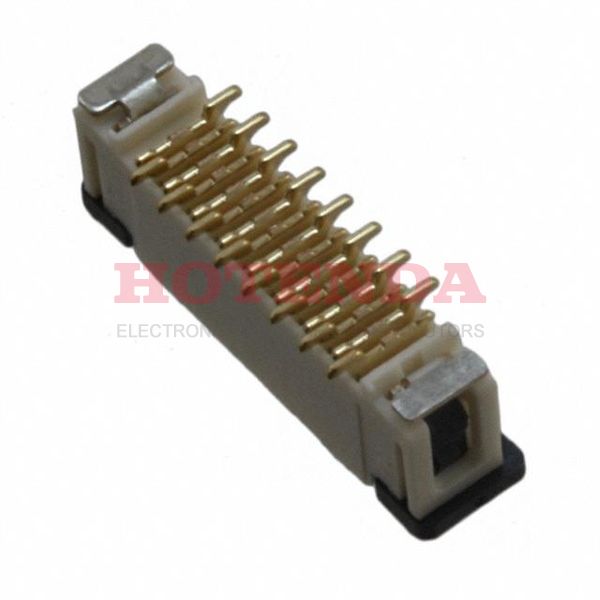

Name: XF2J162412AR100BYOMZ
Brand: Omron Electronics Inc-EMC Div
SKU: XF2J162412AR100BYOMZ
Availability: InStock

new-10%

XF2J162412AR100BYOMZ

Manufacturer part number:XF2J162412AR100BYOMZ

Manufacturer:Omron Electronics Inc-EMC Div

Description:XF2J162412AR100BYOMZ datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Omron Electronics Inc-EMC Div stock available on our website

Case Package:SOT-23

Datasheet:XF2J162412AR100BYOMZ Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Copper Alloy
Contact Plating	Gold
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Polyamide (PA46), Nylon 4/6
Operating Temperature	-30°C~85°C
Packaging	Bulk
Series	XF2J
Feature	Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Number of Positions	16
Max Operating Temperature	85°C
Min Operating Temperature	-30°C
Number of Rows	1
Voltage - Rated	50V
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Orientation	Straight
Current Rating	500mA
Contact Finish	Gold
Housing Color	Natural
Mating Cycles	30
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Vertical - 1 Sided
Cable End Type	Tapered
Locking Feature	Slide Lock
Actuator Color	Black
Contact Finish Thickness	5.90μin 0.150μm
Height Above Board	0.163 4.15mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

XF2J162412AR100BYOMZ Product Details

XF2J162412AR100BYOMZ Overview

Mounting type is Surface Mount.Packaging is performed using a Bulk case.It is part of the XF2J Series of products.A temperature below 85°C is best for using it.It has to be at least -30°C degrees to work.A number of benefits can be derived from the Zero Insertion Force (ZIF) feature of this application.It's mounted by Surface Mount.The device is operating at -30°C~85°C Operating Temperature.
