Name: SPC5748GTK0AMKU6
Brand: NXP USA Inc.
SKU: SPC5748GTK0AMKU6
Price: 70.02000 USD
Availability: InStock

new

SPC5748GTK0AMKU6

Manufacturer part number:SPC5748GTK0AMKU6

Manufacturer:NXP USA Inc.

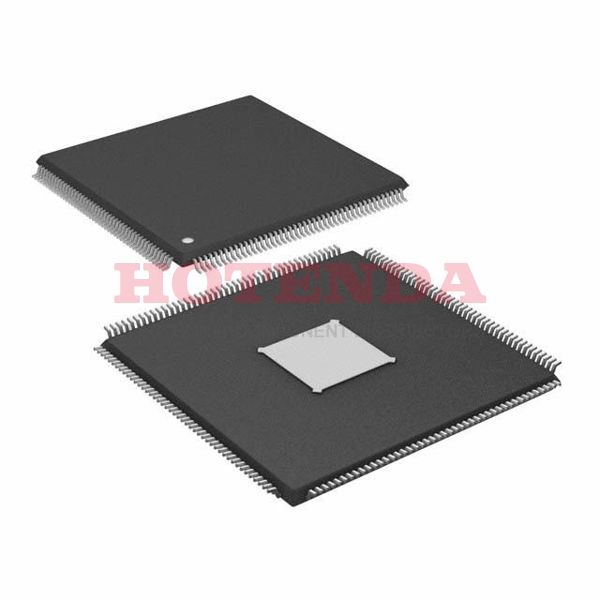

Description:6MB 6M x 8 FLASH e200z2, e200z4, e200z4 32-Bit Tri-Core Microcontroller MPC57xx Series 1.2V 176-LQFP Exposed Pad

Case Package:SOT-23

Datasheet:SPC5748GTK0AMKU6 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	18 Weeks
Mounting Type	Surface Mount
Package / Case	176-LQFP Exposed Pad
Surface Mount	YES
Operating Temperature	-40°C~125°C TA
Packaging	Tray
Series	MPC57xx
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	176
ECCN Code	5A992
Additional Feature	EEPROM SUP : 32KB-192KB EMULATED, ADC CH(INT AND EXT) BASED ON PACKAGE, SUPPORTS 2ND ETHERNET
HTS Code	8542.31.00.01
Technology	CMOS
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	1.2V
Terminal Pitch	0.5mm
Time@Peak Reflow Temperature-Max (s)	40
JESD-30 Code	S-PQFP-G176
Supply Voltage-Max (Vsup)	1.32V
Supply Voltage-Min (Vsup)	1.08V
Oscillator Type	Internal
Number of I/O	129
Speed	80MHz/160MHz
RAM Size	768K x 8
Voltage - Supply (Vcc/Vdd)	3V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	e200z2, e200z4, e200z4
Peripherals	DMA, LVD, POR, WDT
Clock Frequency	40MHz
Program Memory Type	FLASH
Core Size	32-Bit Tri-Core
Program Memory Size	6MB 6M x 8
Connectivity	CANbus, Ethernet, I2C, LINbus, SAI, SPI, USB, USB OTG
Bit Size	32
Data Converter	A/D 80x10b, 64x12b
Has ADC	YES
DMA Channels	YES
PWM Channels	NO
DAC Channels	NO
ROM (words)	6291456
On Chip Program ROM Width	8
Screening Level	ISO 26262
RAM (bytes)	786432
Length	24mm
Height Seated (Max)	1.6mm
Width	24mm
RoHS Status	ROHS3 Compliant

SPC5748GTK0AMKU6 Product Details

SPC5748GTK0AMKU6 Overview

176-LQFP Exposed Pad-packages are available. There are 129 I/O ports on this device. Device mounting type Surface Mount is the type of mounting that the Microcontroller uses. There is a 32-Bit Tri-Core core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of -40°C~125°C TA for this Microcontroller. An electrical component of this type belongs to the MPC57xx series. This program memory has a size of 6MB 6M x 8, which indicates what the size of the program memory is. e200z2, e200z4, e200z4 Core processors are used in MCU. Devices of this type belong to the MICROCONTROLLER, RISC power supply/socket/peripheral ICs category. This chip has a total of 176 terminations on MCU chip. You get a 32-bit size. This Microcontroller chip is powered by 1.2V volts. There are YES DMA channels on this Microcontroller chip. Using the PWM channel NO, the device works with the motor. It's got a 40MHz clock. Some of these features include EEPROM SUP : 32KB-192KB EMULATED, ADC CH(INT AND EXT) BASED ON PACKAGE, SUPPORTS 2ND ETHERNET, for example, as one example.
