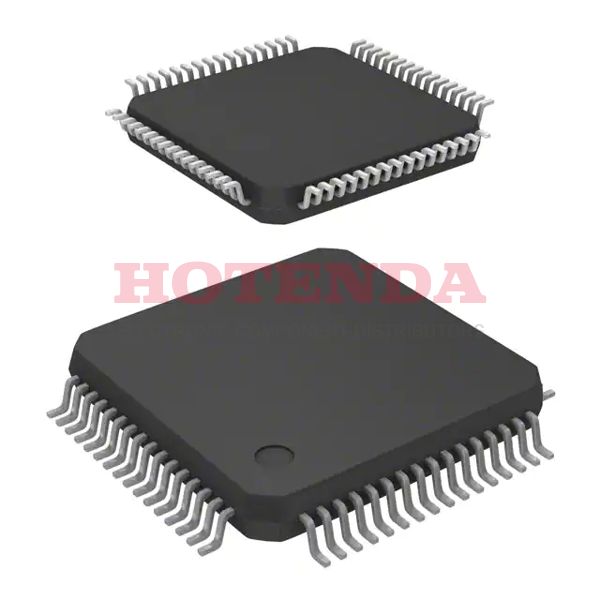

S9S12G128F0VLH Description
The S9S12G128F0VLH is a 16-bit automotive microcontroller product line that has been developed for a cheap cost, excellent performance, and few pins. High-end 8-bit microcontrollers and high-performance 16-bit microcontrollers, like the MC9S12XS-Family, are designed to be bridged by this family. Target markets for the MC9S12G-Family include general automotive applications that demand CAN or LIN/J2602 connectivity. Body controllers, occupant detection, door modules, seat controllers, RKE receivers, smart actuators, lighting modules, and smart junction boxes are typical examples of these applications.
Many of the features present on the MC9S12XS- and MC9S12P-Families, such as error correction code (ECC) on flash memory, a quick analog-to-digital converter (ADC), and a frequency modulated phase locked loop (IPLL) that boosts EMC performance, are also used by the MC9S12G-Family.
The MC9S12G-Family is designed to work with programs with memory sizes as small as 16k. It has an EEPROM with a modest 4 bytes erase sector size to make consumer use easier.
The MC9S12G-Family maintains the low cost, power consumption, EMC, and code-size efficiency benefits now enjoyed by users of NXP's existing 8-bit and 16-bit MCU families while delivering all the benefits and efficiencies of a 16-bit MCU. The MC9S12G-Family operates 16-bit wide accesses without wait states for all peripherals and memories, similar to the MC9S12XS-Family. The MC9S12G-Family strives to maximize functionality, especially for the lower pin count packages, and is offered in 100-pin LQFP, 64-pin LQFP, 48-pin LQFP/QFN, 32-pin LQFP, and 20-pin TSSOP package variants. Additional I/O ports are provided with interrupt capabilities in addition to the I/O ports found in each module, allowing wake-up from wait or stop states.
S9S12G128F0VLH Features
Up to 16-channel, 10 or 12-bit resolution successive approximation analog-to-digital converter (ADC)
Up to two 8-bit digital-to-analog converters (DAC)
Up to one 5V analog comparator (ACMP)
Up to three serial peripheral interface (SPI) modules
Up to three serial communication interface (SCI) modules supporting LIN communications
Up to one multi-scalable controller area network (MSCAN) module (supporting CAN protocol 2.0A/B)
On-chip voltage regulator (VREG) for regulation of input supply and all internal voltages
Autonomous periodic interrupt (API)
Precision fixed voltage reference for ADC conversions
Optional reference voltage attenuator module to increase ADC accuracy
S12 CPU core
Up to 240 Kbyte on-chip flash with ECC
Up to 4 Kbyte EEPROM with ECC
Up to 11 Kbyte on-chip SRAM
Phase locked loop (IPLL) frequency multiplier with internal filter
4–16 MHz amplitude controlled Pierce oscillator
1 MHz internal RC oscillator
Timer module (TIM) supporting up to eight channels that provide a range of 16-bit input capture, output compare, counter, and pulse accumulator functions
Pulse width modulation (PWM) module with up to eight x 8-bit channels
S9S12G128F0VLH Applications
Light sensing & controlling devices
Temperature sensing and controlling devices
Fire detection & safety devices
Industrial instrumentation devices
Process control devices
