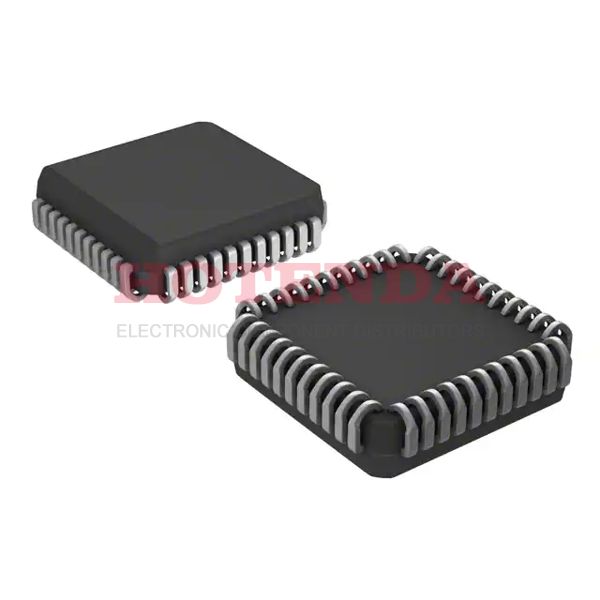

Name: P89V664FA,512
Brand: NXP USA Inc.
SKU: P89V664FA,512
Availability: InStock

new-10%

P89V664FA,512

Manufacturer part number:P89V664FA,512

Manufacturer:NXP USA Inc.

Description:64KB 64K x 8 FLASH 8051 8-Bit Microcontroller 89V Series P89V66* 5V 44-LCC (J-Lead)

Case Package:SOT-23

Datasheet:P89V664FA,512 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	44-LCC (J-Lead)
Surface Mount	YES
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Series	89V
Published	2009
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	44
ECCN Code	3A991.A.2
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	J BEND
Peak Reflow Temperature (Cel)	245
Supply Voltage	5V
Terminal Pitch	1.27mm
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	P89V66*
Pin Count	44
JESD-30 Code	S-PQCC-J44
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	5V
Supply Voltage-Min (Vsup)	4.5V
Oscillator Type	Internal
Number of I/O	36
Speed	40MHz
RAM Size	2K x 8
Voltage - Supply (Vcc/Vdd)	4.5V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	8051
Peripherals	POR, PWM, WDT
Clock Frequency	40MHz
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	64KB 64K x 8
Connectivity	I2C, SPI, UART/USART
Supply Current-Max	50mA
Bit Size	8
Has ADC	NO
DMA Channels	NO
PWM Channels	YES
DAC Channels	NO
Address Bus Width	16
External Data Bus Width	8
Length	16.585mm
Height Seated (Max)	4.57mm
Width	16.585mm
RoHS Status	ROHS3 Compliant

P89V664FA,512 Product Details

P89V664FA,512 Overview

There is a 44-LCC (J-Lead) package available. The board has 36 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 8-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~85°C TA is the temperature range at which this Microcontroller operates. 89V-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 64KB 64K x 8. Powered by a 8051 Core processor. Microcontroller's a MICROCONTROLLER uPs/uCs/Peripheral IC. IC Chip terminations are 44. As a result, this Microcontroller comes with a 8-bit size. Input voltage for the chip is 5V volts. A total of NO DMA channels are available. There are a number of alternatives to the base part number P89V66* that you can find. Using YES PWM channels, the device works. The pins counted are 44. As far as the clock frequency is concerned, it operates at 40MHz clock speed.
