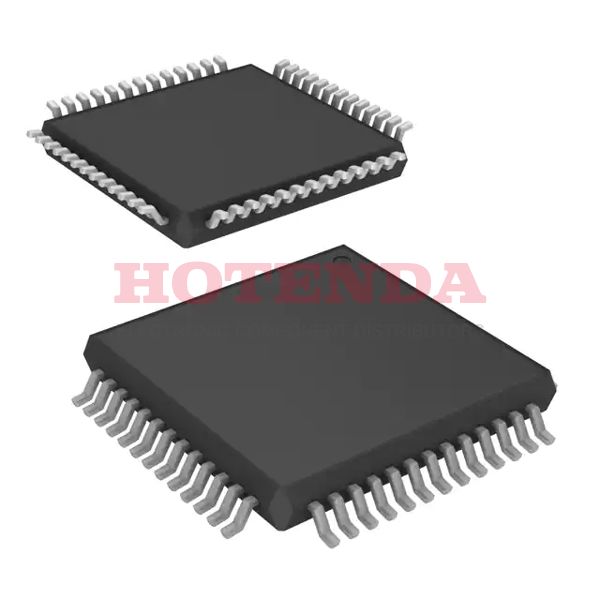

MPC9774AE Overview
Clock generator is packaged in the way of Tray. Clock PLL is embedded in the 52-LQFP package. LVCMOS is designed for clock generator's input. 1 circuits are used to achieve clock PLL's superior flexibility. 125MHz is the maximal value for normal operation. PLL clock is mounted in the way of Surface Mount. Clock generators should operate with the voltage supply of 3.135V~3.465V. The temperature should be set at 0°C~70°C to ensure reliable performance. This electronic component can be classified into Clock Generator, Fanout Distribution, Multiplexer, Zero Delay Buffer. According to the base part number, its related parts can be founded.
MPC9774AE Features
Available in the 52-LQFP
MPC9774AE Applications
There are a lot of NXP USA Inc.
MPC9774AE Clock Generators applications.
- Wireless infrastructure
- Instrument
- Automatic test equipment
- Wide area power system
- Digital circuits
- Wireless base station for LTE, LTE-advanced
- Picocells, femtocells and small cells
- Sampling clocks for ADC and DAC
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
