Name: MK53DN512ZCMD10
Brand: NXP USA Inc.
SKU: MK53DN512ZCMD10
Availability: InStock

new-10%

MK53DN512ZCMD10

Manufacturer part number:MK53DN512ZCMD10

Manufacturer:NXP USA Inc.

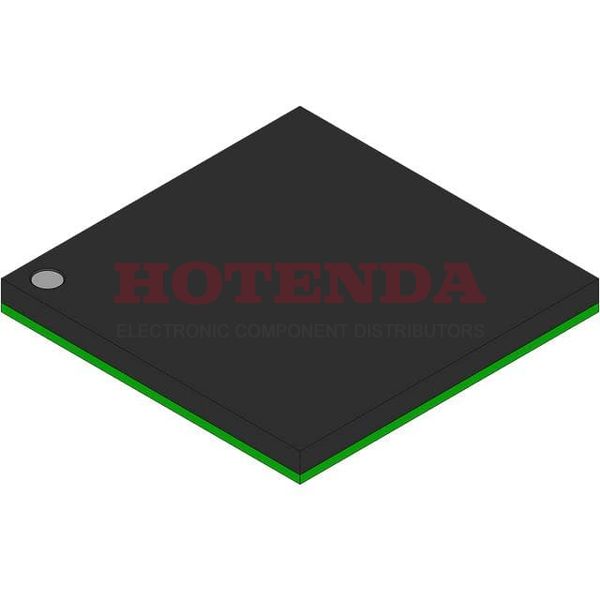

Description:512KB 512K x 8 FLASH ARM® Cortex®-M4 32-Bit Microcontroller Kinetis K50 Series MK53DN512 3.3V 144-LBGA

Case Package:SOT-23

Datasheet:MK53DN512ZCMD10 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	144-LBGA
Surface Mount	YES
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	Kinetis K50
Published	2013
JESD-609 Code	e1
Part Status	Not For New Designs
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	144
ECCN Code	3A991.A.2
Terminal Finish	TIN SILVER COPPER
HTS Code	8542.31.00.01
Terminal Position	BOTTOM
Terminal Form	BALL
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	MK53DN512
JESD-30 Code	S-PBGA-B144
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	3.6V
Supply Voltage-Min (Vsup)	1.71V
Oscillator Type	Internal
Number of I/O	94
Speed	100MHz
RAM Size	128K x 8
Voltage - Supply (Vcc/Vdd)	1.71V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M4
Peripherals	DMA, I2S, LCD, LVD, POR, PWM, WDT
Clock Frequency	32MHz
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	512KB 512K x 8
Connectivity	EBI/EMI, Ethernet, I2C, IrDA, SD, SPI, UART/USART, USB, USB OTG
Bit Size	32
Data Converter	A/D 41x16b; D/A 2x12b
Has ADC	YES
DMA Channels	YES
PWM Channels	YES
DAC Channels	YES
Length	13mm
Height Seated (Max)	1.7mm
Width	13mm
RoHS Status	ROHS3 Compliant

MK53DN512ZCMD10 Product Details

MK53DN512ZCMD10 Overview

There is a 144-LBGA package available. The board has 94 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 32-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~85°C TA is the temperature range at which this Microcontroller operates. Kinetis K50-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 512KB 512K x 8. Powered by a ARM® Cortex®-M4 Core processor. Microcontroller's a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. IC Chip terminations are 144. As a result, this Microcontroller comes with a 32-bit size. Input voltage for the chip is 3.3V volts. A total of YES DMA channels are available. There are a number of alternatives to the base part number MK53DN512 that you can find. Using YES PWM channels, the device works. As far as the clock frequency is concerned, it operates at 32MHz clock speed.
