Name: MIMXRT1051CVL5A
Brand: NXP USA Inc.
SKU: MIMXRT1051CVL5A
Availability: InStock

new-10%

MIMXRT1051CVL5A

Manufacturer part number:MIMXRT1051CVL5A

Manufacturer:NXP USA Inc.

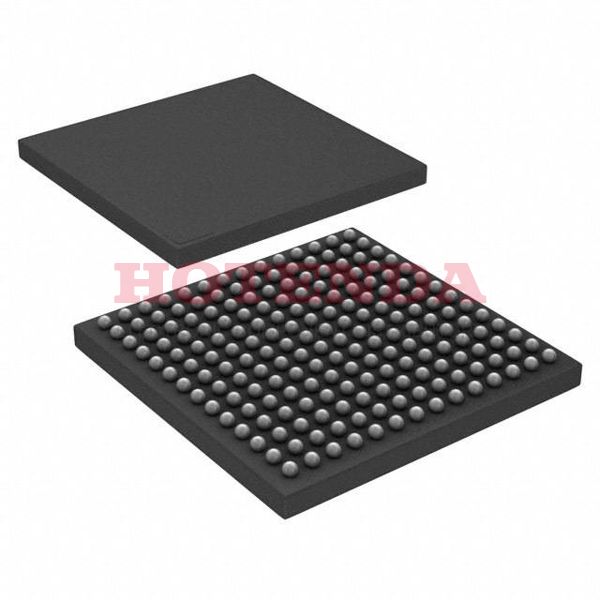

Description:External Program Memory ARM® Cortex®-M7 32-Bit Microcontroller RT1050 Series 196-LFBGA

Case Package:SOT-23

Datasheet:MIMXRT1051CVL5A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	52 Weeks
Mounting Type	Surface Mount
Package / Case	196-LFBGA
Surface Mount	YES
Operating Temperature	-40°C~105°C TJ
Packaging	Tray
Series	RT1050
Published	2016
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	196
Additional Feature	24MHZ NOMINAL CRYSTAL FREQUENCY AVAILABLE
Terminal Position	BOTTOM
Terminal Form	BALL
Terminal Pitch	0.65mm
Reach Compliance Code	compliant
JESD-30 Code	S-PBGA-B196
Supply Voltage-Max (Vsup)	1.26V
Supply Voltage-Min (Vsup)	1.15V
Oscillator Type	Internal/External
Number of I/O	127
Speed	528MHz
RAM Size	512K x 8
Voltage - Supply (Vcc/Vdd)	3V~3.6V
uPs/uCs/Peripheral ICs Type	MICROPROCESSOR, RISC
Core Processor	ARM® Cortex®-M7
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Program Memory Type	External Program Memory
Core Size	32-Bit
Connectivity	CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG
Data Converter	A/D 20x12b
Boundary Scan	YES
Low Power Mode	YES
Format	FLOATING POINT
Integrated Cache	YES
Length	10mm
Height Seated (Max)	1.52mm
Width	10mm
RoHS Status	RoHS Compliant

MIMXRT1051CVL5A Product Details

MIMXRT1051CVL5A Overview

The package is 196-LFBGA-shaped. There are 127 I/Os. In the case of the IC chip, the type of mounting is Surface Mount. Microcontroller is based on the 32-Bit core architecture. The type of program memory it uses is External Program Memory. Temperatures in the range of -40°C~105°C TJ are operated by this Microcontroller. It is part of the RT1050 series of electrical components. A ARM® Cortex®-M7 Core Processor is at the core of this Microcontroller. This device belongs to the MICROPROCESSOR, RISC uPs/uCs/Peripheral ICs category. IC Chip 196 has 196 terminations. In addition to the above, there are other features such as 24MHZ NOMINAL CRYSTAL FREQUENCY AVAILABLE, to name but a few.
