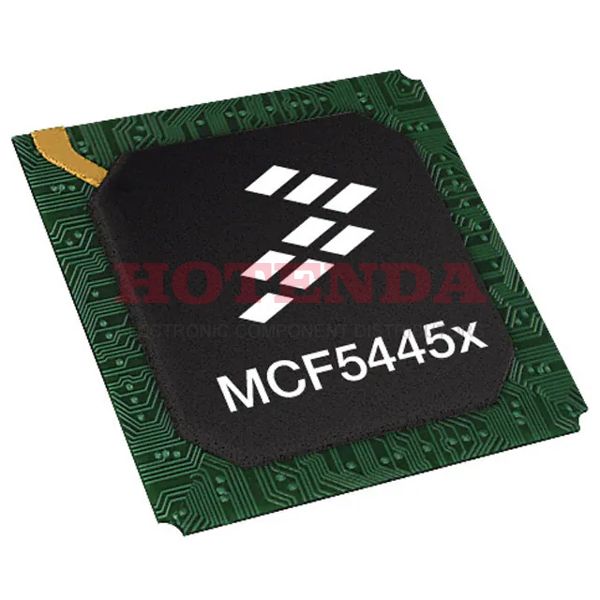

Name: MCF54454CVR200
Brand: NXP USA Inc.
SKU: MCF54454CVR200
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mounting Type	Surface Mount
Package / Case	360-BBGA
Surface Mount	YES
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	MCF5445x
Published	2006
JESD-609 Code	e2
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	360
ECCN Code	5A992
Terminal Finish	TIN COPPER/TIN SILVER
HTS Code	8542.31.00.01
Subcategory	Microprocessors
Technology	CMOS
Terminal Position	BOTTOM
Terminal Form	BALL
Peak Reflow Temperature (Cel)	260
Supply Voltage	1.5V
Terminal Pitch	1mm
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	MCF54454
JESD-30 Code	S-PBGA-B360
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	1.65V
Power Supplies	1.51.82.53.3V
Supply Voltage-Min (Vsup)	1.35V
Oscillator Type	Internal
Number of I/O	132
Speed	200MHz
RAM Size	32K x 8
Voltage - Supply (Vcc/Vdd)	1.35V~3.6V
uPs/uCs/Peripheral ICs Type	MICROPROCESSOR, RISC
Core Processor	Coldfire V4
Peripherals	DMA, WDT
Clock Frequency	66MHz
Program Memory Type	ROMless
Core Size	32-Bit
Connectivity	I2C, SPI, SSI, UART/USART, USB OTG
Bit Size	32
Address Bus Width	32
Boundary Scan	YES
Low Power Mode	YES
External Data Bus Width	32
Format	FIXED POINT
Integrated Cache	YES
Length	23mm
Height Seated (Max)	2.48mm
Width	23mm
RoHS Status	ROHS3 Compliant

MCF54454CVR200 Product Details

MCF54454CVR200 Overview

This Microcontroller comes in a 360-BBGA package. There are 132 I/O ports on this device. It is important to note that the Microcontroller has a Surface Mount mounting type. A 32-Bit core is used in order to power the IC chip. There is a memory type of ROMless in its program memory. Temperatures in this range are operated by this Microcontroller. A MCF5445x series electrical component is used in this application. Coldfire V4 Core processors are used in MCU. This Microcontroller belongs to the MICROPROCESSOR, RISC uPs/uCs/peripheral ICs type. There are 360 terminations on the IC chip. A 32-bit operation is performed by this part. Microcontroller chip has outputs of 1.5V volts. The base part number MCF54454 provides alternatives. It's got a 66MHz clock.
