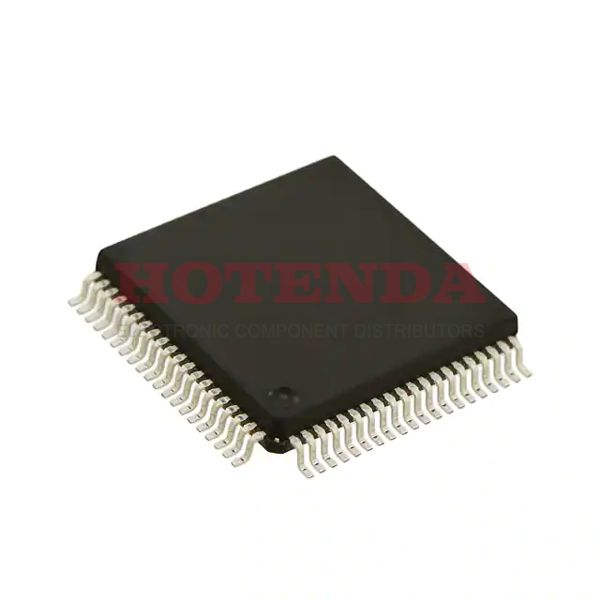

MC9S12XD128CAA Overview
In a 80-QFP package, the MCU is available. 59 I/Os are available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 16-Bit core is the core of the MCU. There is a FLASH type of memory for its program. There is a temperature range of -40°C~85°C TA that is operated by this Microcontroller. HCS12X series components make up this electrical component. 128KB 128K x 8 is the size of its program memory. This device falls under the MICROCONTROLLER uPs/uCs/Peripheral ICs category. 80 is the number of terminations on the IC chip that are present. This part works in a 16-bit manner. There is a 2.5V volt supply output on the chip. DMA channels number YES. The base part number MC9S12XD128 can be used to find alternatives. The device works in YES PWM channels. In this device, there is a CPU12 CPU embedded within it. A 80MHz-clock frequency is used to operate it. I would like to mention a few additional features such as IT ALSO REQUIRES 5 V SUPPLY in order to name a few.
MC9S12XD128CAA Features
80-QFP package
Mounting type of Surface Mount
MC9S12XD128CAA Applications
There are a lot of NXP USA Inc.
MC9S12XD128CAA Microcontroller applications.
- Heater/Fan
- Calculator
- Kindle
- Christmas lights
- 3D printers
- Washing machine
- Microwave ovens
- Home appliances
- Home video and audio
- Entertainment products
