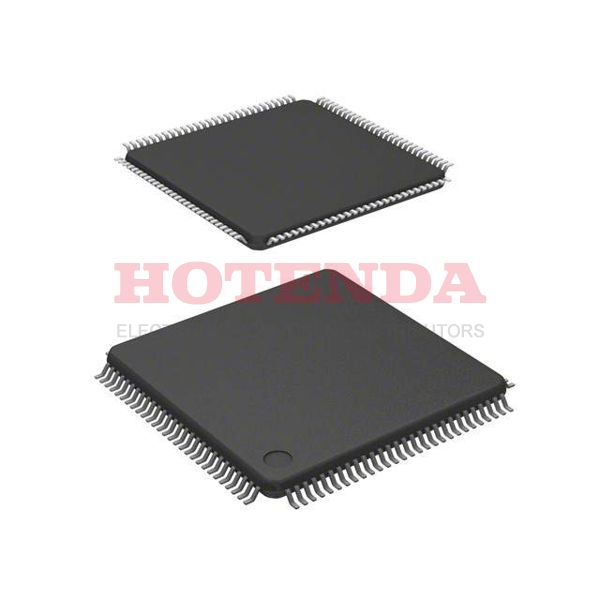

MC9S12DP256CCPV Description
The MC9S12DP256CCPV microcontroller unit (MCU) is a 16-bit device composed of standard on-chip peripherals including a 16-bit central processing unit (HCS12 CPU), 256K bytes of Flash EEPROM, 12K bytes of RAM, 4K bytes of EEPROM, two asynchronous serial communications interfaces (SCI), three serial peripheral interfaces (SPI), an 8-channel IC/OC enhanced capture timer, two 8-channel, 10-bit analog-to-digital converters (ADC), an 8-channel pulse -width modulator (PWM), a digital Byte Data Link Controller (BDLC), 29 discrete digital I/O channels (Port A, Port B, Port K and Port E), 20 discrete digital I/O lines with interrupt and wakeup capability, five CAN 2.0 A, B software compatible modules (MSCAN12), and an Inter-IC Bus. The MC9S12DP256CCPV has full 16-bit data paths throughout.
MC9S12DP256CCPV Features
HCS12 Core
CRG (low current oscillator, PLL, reset, clocks, COP watchdog, real-time interrupt, clock monitor)
8-bit and 4-bit ports with interrupt functionality
Two 8-channel Analog-to-Digital Converters
Five 1M bit per second, CAN 2.0 A, B software compatible modules
Enhanced Capture Timer
8 PWM channels
MC9S12DP256CCPV Applications
Communications equipment
Wireless infrastructure
Enterprise systems
Enterprise projectors
Personal electronics
Portable electronics
